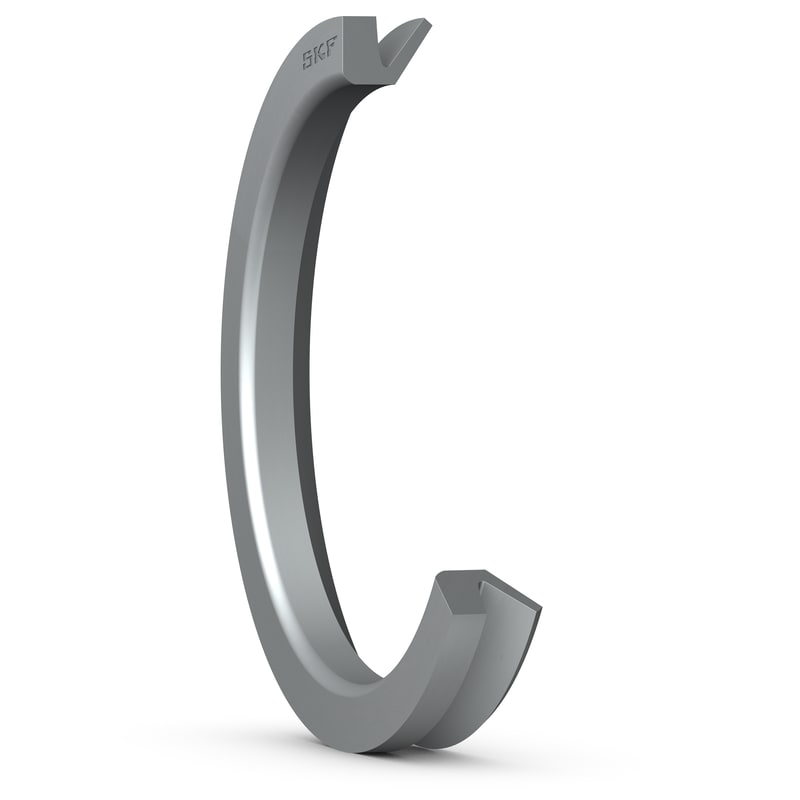

470850V-ring seal
V-ring seals (or V-rings) are all-rubber seals with a wide range of applications. The seals are used to protect bearings from contamination or as secondary seals to protect primary seals in highly contaminated environments. They are a cost-effective and easy to install contaminant barrier for all kind of shafts. They are available in nitrile rubber and also in fluoro rubber for higher temperatures.
| Seal design |
VR5
|
| Lip material |
Nitrile rubber (NBR)
|
Dimensions
| d1 |
over 841 mm
|
Shaft diameter range (over) |
|---|---|---|
| d1 |
incl. 851 mm
|
Shaft diameter range (incl.) |
| d |
814 mm
|
Seal inside diameter, free state |
|---|---|---|
| b |
100 mm
|
Nominal seal width |
| b1 |
67.5 mm
|
Seal seat width |
| c |
13 mm
|
Nominal seal height |
| 2 x |
24 mm
|
Radial gap |
| 2 y |
115 mm
|
Radial distance |
| B1 |
85 mm
|
Seal fitted width |
|
± 12 mm
|
Tolerance seal fitted width |
Application and operating conditions
| Operating temperature |
max. 100 °C
|
| Operating temperature |
min. -40 °C
|
