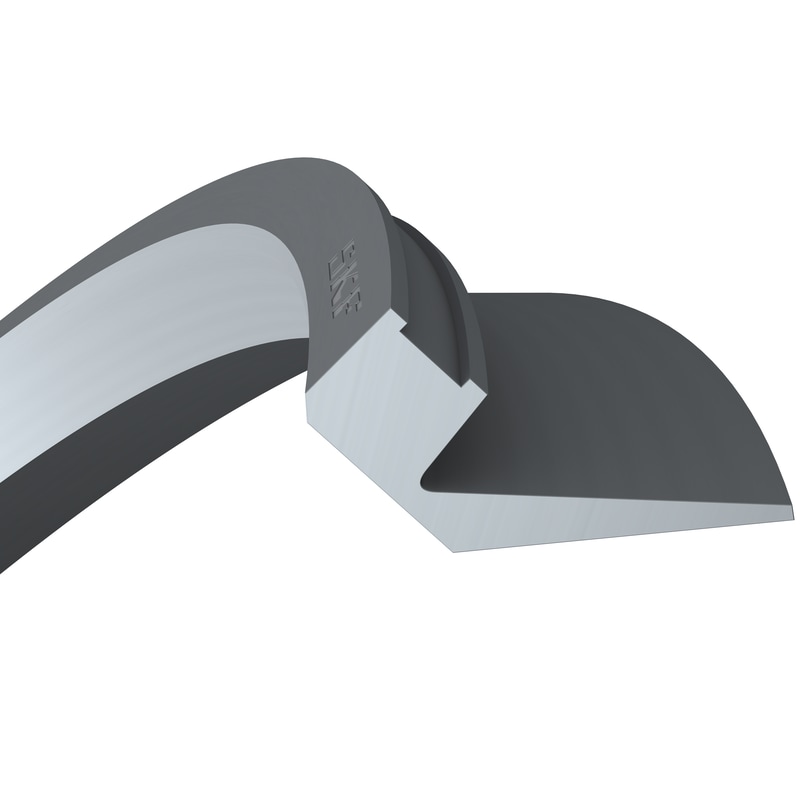

470681V-ring seal, VR6 design, North American standard, interchangeable with VRME design
V-ring seals (V-rings) are all-rubber, axial shaft seals. They offer an easy-to-install solution for rotating shaft applications, including use as a secondary seal in highly contaminated environments. VR6 design seals are heavy-duty, large diameter V-rings for applications with large axial displacements. They can be located axially and radially on the shaft using a standard band clamp. They are primarily designed to protect high-speed bearing arrangements in large machinery applications.
| Seal design |
VR6
|
| Lip material |
Nitrile rubber (NBR)
|
Dimensions
| d1 |
over 680 mm
|
Shaft diameter range (over) |
|---|---|---|
| d1 |
incl. 690 mm
|
Shaft diameter range (incl.) |
| d |
660 mm
|
Seal inside diameter, free state |
|---|---|---|
| b |
65 mm
|
Nominal seal width |
| b1 |
32.5 mm
|
Seal seat width |
| c |
21 mm
|
Nominal seal height |
| 2 x |
24 mm
|
Radial gap |
|
D1 max. = d1 + 2 x
|
||
| 2 y |
115 mm
|
Radial distance |
|
D min. = d1 + 2 y
|
||
| B1 |
50 mm
|
Seal fitted width |
|
± 12 mm
|
Tolerance seal fitted width | |
Application and operating conditions
| Operating temperature |
max. 100 °C
|
| Operating temperature |
min. -40 °C
|
