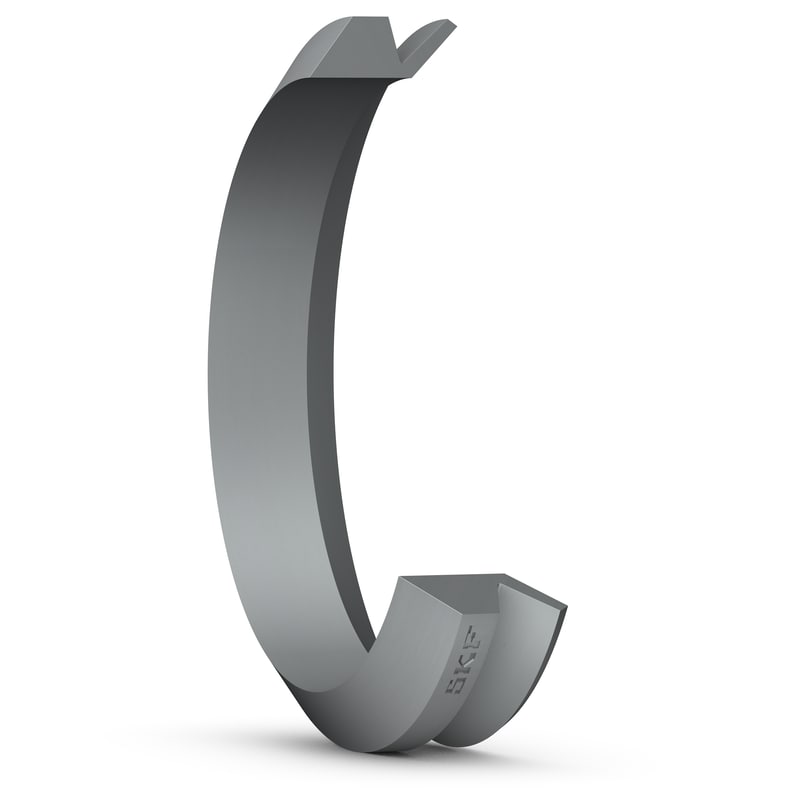

400201V-ring seal, VR2 design, North American standard, interchangeable with VS design
V-ring seals (V-rings) are all-rubber, axial shaft seals. They offer an easy-to-install solution for rotating shaft applications, including use as a secondary seal in highly contaminated environments. The VR2 design includes a standard low cross section with a tapered back side face and a wide seal body, providing a firm hold on the shaft. VR2 seals are commonly used in agricultural and automotive applications.
| Seal design |
VR2
|
| Lip material |
Nitrile rubber (NBR)
|
Dimensions
| d1 |
over 19 mm
|
Shaft diameter range (over) |
|---|---|---|
| d1 |
incl. 21 mm
|
Shaft diameter range (incl.) |
| d |
18 mm
|
Seal inside diameter, free state |
|---|---|---|
| b |
10.5 mm
|
Nominal seal width |
| b1 |
7.9 mm
|
Seal seat width |
| c |
4 mm
|
Nominal seal height |
| 2 x |
2 mm
|
Radial gap |
|
D1 max. = d1 + 2 x
|
||
| 2 y |
12 mm
|
Radial distance |
|
D min. = d1 + 2 y
|
||
| B1 |
9 mm
|
Seal fitted width |
|
± 0.8 mm
|
Tolerance seal fitted width | |
Application and operating conditions
| Operating temperature |
max. 100 °C
|
| Operating temperature |
min. -40 °C
|
