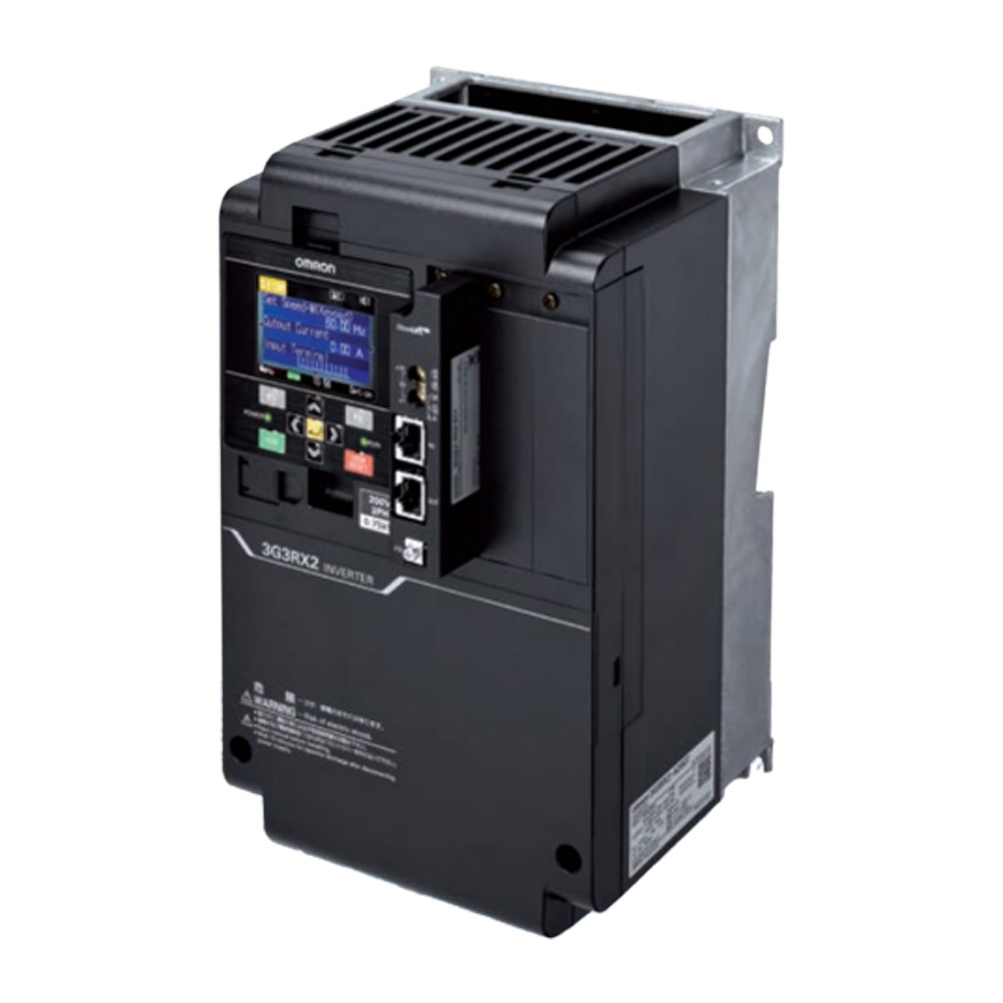

Inverter RX2, 200 V, VLD: 229 A / 55 kW, LD: 210 A / 55 kW, ND: 182 A / 45 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 230 V three phase |
| Max. motor output at constant torque (HD) | 45 kW |
| Max. motor output at variable torque (ND) | 55 kW |
| Built in EMC filter | ✔️ |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | Serial RS-485, USB |
| Communication option(s) | MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 550 mm |
| Product Width (unpacked) | 390 mm |
| Product Depth (unpacked) | 250 mm |
| Product Weight (unpacked) | 33000 g |
| Degree of protection (IP) | IP20 |
 |
AX-FER5045-PE | Ferrite choke, 50mm diameter, for 45kW inverters and below |
|
Datasheet
EN PDF
Inverter RX2, 200 V, VLD: 295 A / 75 kW, LD: 270 A / 75 kW, ND: 220 A / 55 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.
Inverter RX2, 200 V, VLD: 15,6 A / 3,7 kW, LD: 12 A / 3,7 kW, ND: 11 A / 2,2 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.
Inverter RX2, 200 V, VLD: 60 A / 15 kW, LD: 56 A / 15 kW, ND: 46 A / 11 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.

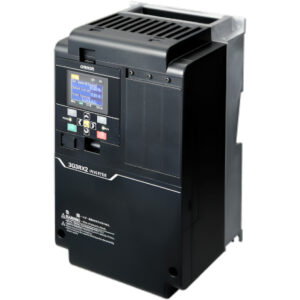

Inverter RX2, 400 V, VLD: 8,3 A / 3,7 kW, LD: 6,7 A / 3,7 kW, ND: 5,5 A / 2,5 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.
