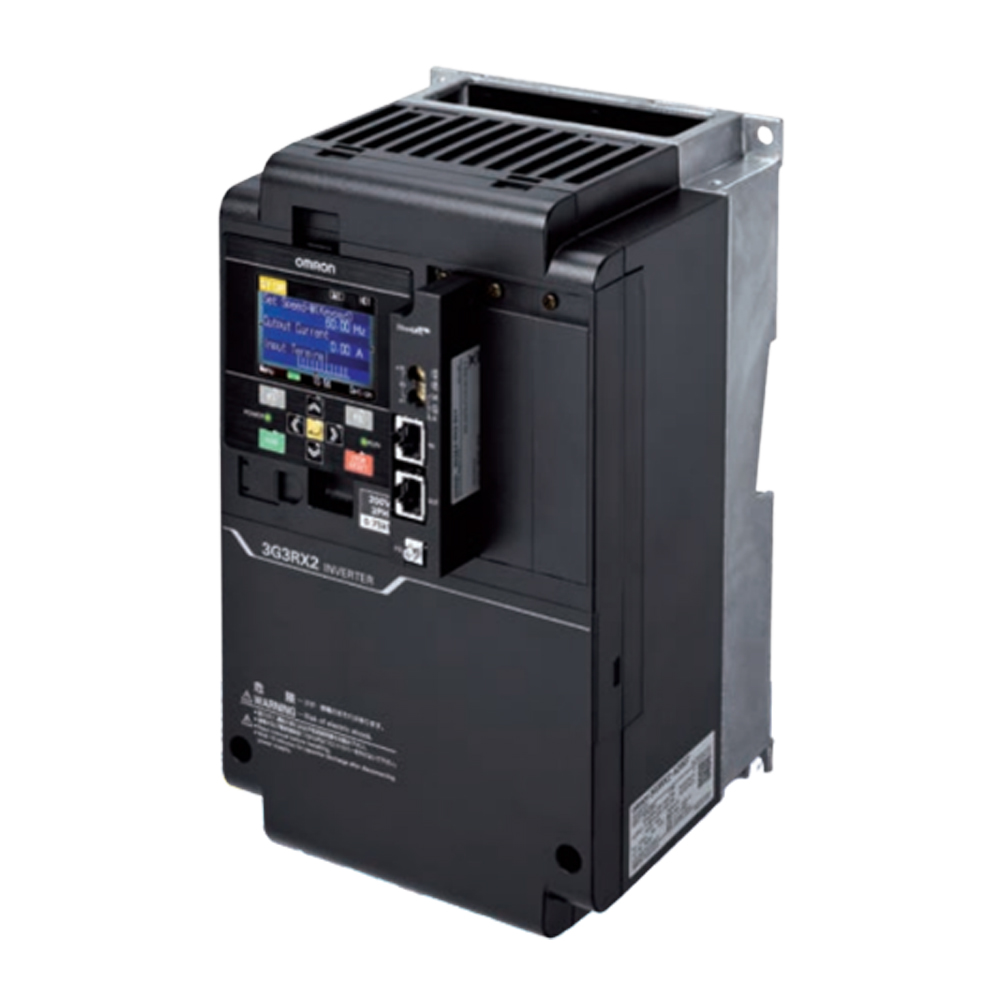

Inverter RX2, 200 V, VLD: 93 A / 22 kW, LD: 85 A / 22 kW, ND: 76 A / 18,5 kW, open/closed loop vector, built-in filter, max. output freq. 590Hz, IP20.
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector |
| Drive supply voltage | 230 V three phase |
| Max. motor output at constant torque (HD) | 18.5 kW |
| Max. motor output at variable torque (ND) | 22 kW |
| Built in EMC filter | ✔️ |
| Finless type | ❌ |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Regenerative solutions | As inverter option |
| Communication port(s) | Serial RS-485, USB |
| Communication option(s) | MODBUS/TCP, PROFIBUS DP Slave, PROFINET Slave |
| Product Height (unpacked) | 390 mm |
| Product Width (unpacked) | 245 mm |
| Product Depth (unpacked) | 190 mm |
| Product Weight (unpacked) | 10000 g |
| Degree of protection (IP) | IP20 |
 |
AX-FER5045-PE | Ferrite choke, 50mm diameter, for 45kW inverters and below |
|
 |
AX-RAI00091000-DE | AC input reactor, 100 A, 0.09 mH, for 18.5 to 22 kW sizes, 200 VAC, 3 phase |
|
 |
AX-RAO00390800-DE | AC output reactor, 80 A, 0.39 mH, for 18.5 kW , 200 VAC, 3 phase |
|
 |
AX-RC00301275-DE | DC link reactor, 127.5 A, 0.30 mH, for 18.5 kW and 22 kW , 200 VAC, 3 phase |
|
