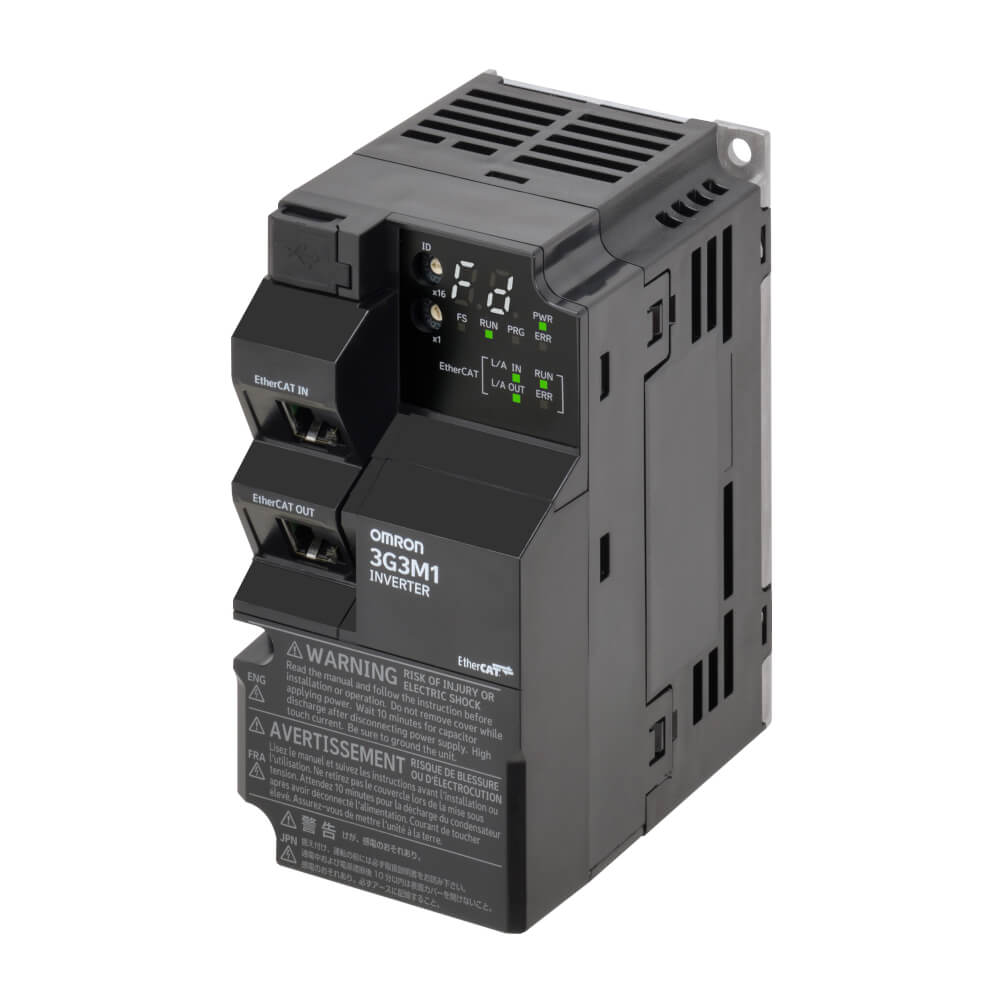

M1 AC Drive, 0.2/0.4 kW (HD/ND), 1.6/1.9 A (HD/ND), 200 VAC, 1~ input, OLV/CLV control, EtherCAT, STO (FSoE + wired), max. output freq. 590 Hz.
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 230 V single phase |
| Max. motor output at constant torque (HD) | 0.2 kW |
| Max. motor output at variable torque (ND) | 0.4 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | EtherCAT Slave, USB |
| Product Height (unpacked) | 127 mm |
| Product Width (unpacked) | 68 mm |
| Product Depth (unpacked) | 98 mm |
| Product Weight (unpacked) | 500 g |
| Finless type | ❌ |
| AX-FER2102-PE | Ferrite choke, 21mm diameter, for 2.2kW inverters and below |
|
|
| AX-FIC1014-SE | M1 Series RFI filter 14 A, 200 VAC, single phase. |
|
|
| AX-FIC1014-SE-LL | Low Leakage M1 Series RFI filter 14 A, 200 VAC, single phase. |
|
|
| AX-RAI02000070-DE | AC input reactor, 7 A, 2.0 mH, for 0.4 kW sizes, 200 VAC, 1 phase |
|
|
| AX-RAO11500026-DE | AC output reactor, 2.6 A, 11.5 mH, for 0.1, 0.2 and 0.4 kW, 200 VAC, 1/3 phase |
|
|
| AX-RC06750061-DE | DC link reactor, 6.1 A, 6.75 mH, for 0.4 kW and 0.7 kW, 200 VAC |
|
|
| AX-RC10700032-DE | DC link reactor, 3.3 A, 10.7 mH, for 0.1 and 0.4 kW, 200 VAC |
|
|
| AX-REM00K1100-IE | Braking resistor, 100 W, 100 ohm nominal |
|
|
| AX-REM00K2100-IE | Braking resistor, 200 W, 100 ohm nominal |
|
