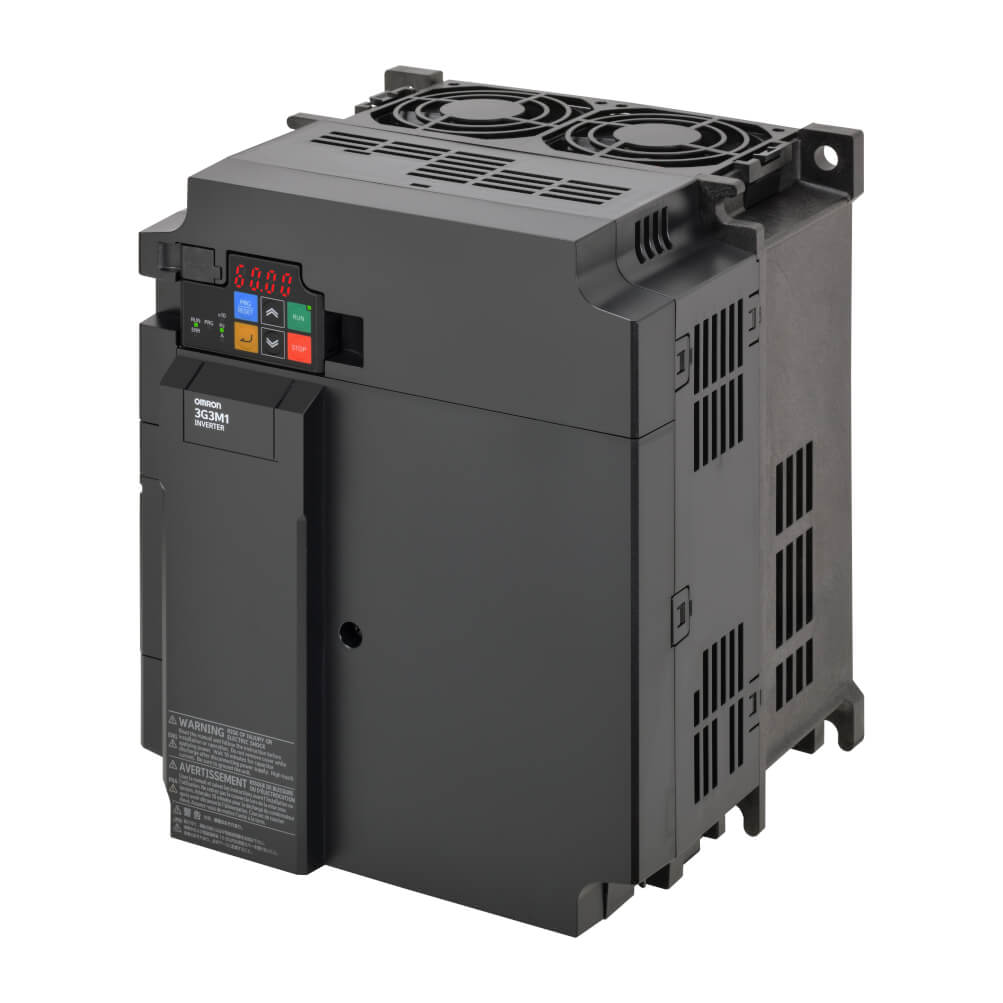

M1 AC Drive, 15/18.5 kW (HD/ND), 31/38 A (HD/ND), 400 VAC, 3~ input, OLV/CLV control, STO (wired), max. output freq. 590 Hz
| Drive control method | Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control |
| Drive supply voltage | 400 V three phase |
| Max. motor output at constant torque (HD) | 15 kW |
| Max. motor output at variable torque (ND) | 18.5 kW |
| Built in EMC filter | ❌ |
| Degree of protection (IP) | IP20 |
| Compatible motor type | Induction or asynchronous motor, Permanent magnet motor |
| Communication port(s) | MODBUS Slave, Serial RS-485, USB |
| Product Height (unpacked) | 260 mm |
| Product Width (unpacked) | 220 mm |
| Product Depth (unpacked) | 203 mm |
| Product Weight (unpacked) | 5400 g |
| Finless type | ❌ |
| AX-FER2815-PE | Ferrite choke, 28mm diameter, for 15kW inverters and below |
|
|
| AX-FIC4061-SE | M1 RFI filter 61 A, 400 VAC, three phase. |
|
|
| AX-FIC4061-SE-LL | Low Leakage M1 RFI filter 61 A, 400 VAC, three phase. |
|
|
| AX-RAI00300450-DE | AC input reactor, 45 A, 0.3 mH, for 15 to 18.5 kW sizes, 400 VAC, 3 phase |
|
|
 |
AX-RAI00360500-DE | AC input reactor, 50 A, 0.36 mH, for 18.5 to 22 kW sizes, 400 VAC, 3 phase |
|
| AX-RAI00440300-DE | AC input reactor, 30 A, 0.44 mH, for 7.5 to 15 kW sizes, 400 VAC, 3 phase |
|
|
| AX-RAO01300480-DE | AC output reactor, 48 A, 1.3 mH, for 22 kW , 400 VAC, 3 phase |
|
|
| AX-RAO01650400-DE | AC output reactor, 40 A, 1.65 mH, for 18.5 kW , 400 VAC, 3 phase |
|
|
| AX-RC01200644-DE | DC link reactor, 64.4 A, 1.2 mH, for 18.5 to 22 kW, 400 VAC |
|
|
| AX-RC01750430-DE | DC link reactor, 43 A, 1.75 mH, for 15 kW, 400 VAC |
|
|
| AX-REM00K4050-IE | Braking resistor, 400 W, 50 ohm nominal |
|
|
| AX-REM00K9040-IE | Braking resistor, 900 W, 40 ohm nominal |
|
|
 |
AX-REM01K9050-IE | Braking resistor, 50 ohm, 1900 W nominal |
|
