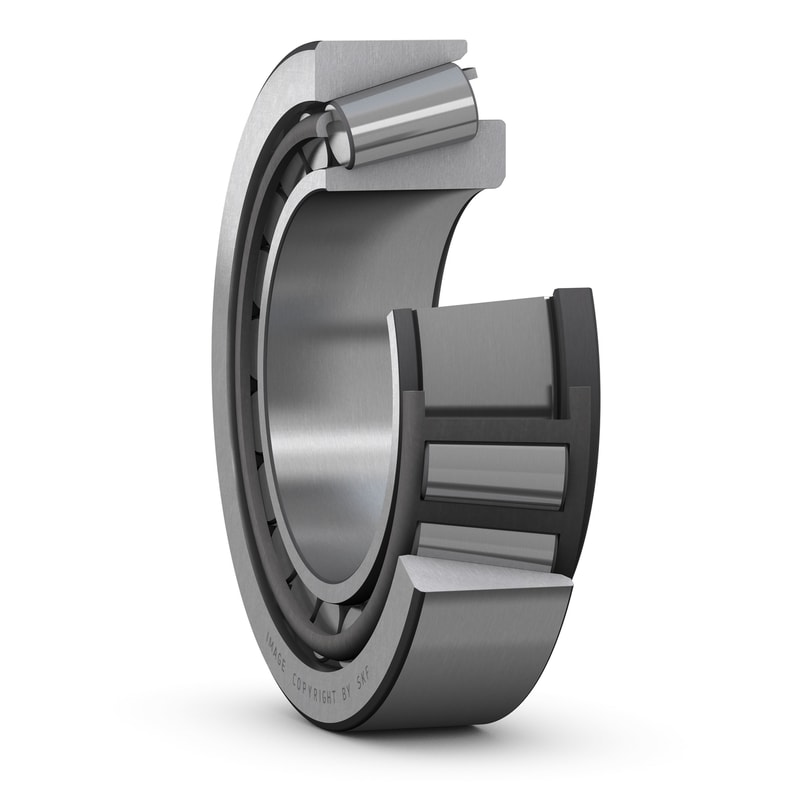

Single row tapered roller bearings, inch sizes, are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.
| SKF performance class |
SKF Explorer
|
| Dimension series |
38800
|
| d |
263.525 mm
|
Bore diameter |
|---|---|---|
| D |
325.438 mm
|
Outside diameter |
| T |
28.575 mm
|
Total width |
| d1 |
≈ 293.2 mm
|
Shoulder diameter of inner ring |
| B |
28.575 mm
|
Width of inner ring |
| C |
25.4 mm
|
Width of outer ring |
| r1,2 |
min. 1.5 mm
|
Chamfer dimension of inner ring |
| r3,4 |
min. 1.5 mm
|
Chamfer dimension of outer ring |
| a |
48.975 mm
|
Distance side face to pressure point |
| da |
max. 282 mm
|
Diameter of shaft abutment |
|---|---|---|
| db |
min. 276.5 mm
|
Diameter of shaft abutment |
| Da |
min. 307 mm
|
Diameter of housing abutment |
| Da |
max. 313 mm
|
Diameter of housing abutment |
| Db |
min. 313 mm
|
Diameter of housing abutment |
| Ca |
min. 4 mm
|
Minimum width of space required in housing on large side face |
| Cb |
min. 3 mm
|
Minimum width of space required in housing on small side face |
| ra |
max. 1.5 mm
|
Radius of shaft fillet |
| rb |
max. 1.5 mm
|
Radius of housing fillet |
| Basic dynamic load rating | C |
273 kN
|
|---|---|---|
| Basic static load rating | C0 |
550 kN
|
| Fatigue load limit | Pu |
48 kN
|
| Reference speed |
1 400 r/min
|
|
| Limiting speed |
1 700 r/min
|
|
| Limiting value | e |
0.37
|
| Calculation factor | Y |
1.6
|
| Calculation factor | Y0 |
0.9
|
| Mass |
5.3 kg
|
