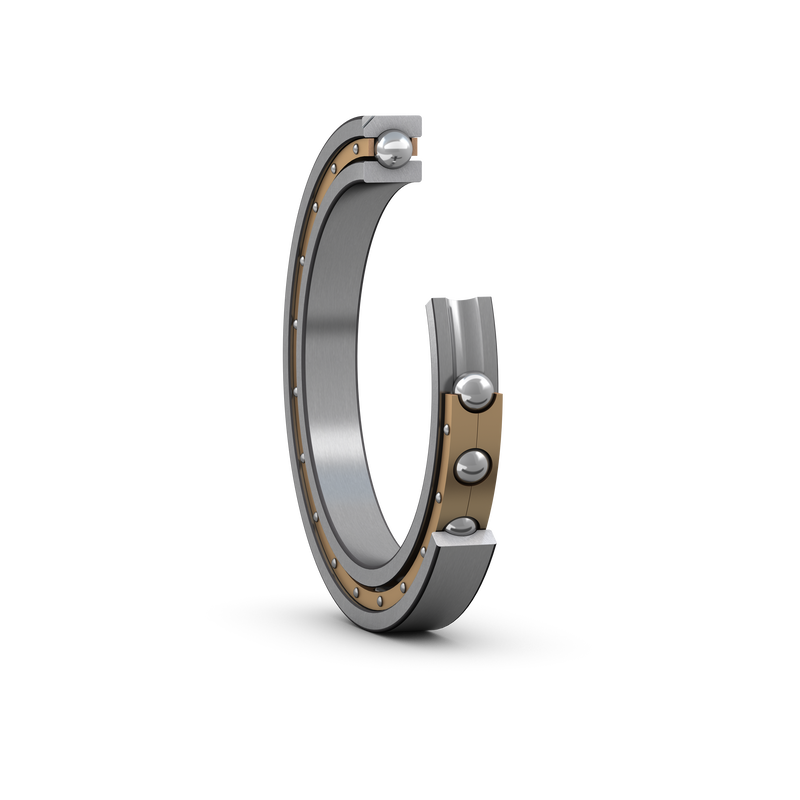

Single row deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
| d |
800 mm
|
Bore diameter |
|---|---|---|
| D |
1 080 mm
|
Outside diameter |
| B |
115 mm
|
Width |
| d1 |
≈ 894.22 mm
|
Shoulder diameter |
| D1 |
≈ 985.8 mm
|
Shoulder diameter |
| h |
32 mm
|
Depth of locating slot |
| b |
20.5 mm
|
Width of locating slot |
| r0 |
3 mm
|
Corner radius of locating slot |
| r1,2 |
min. 6 mm
|
Chamfer dimension |
| da |
min. 823 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 1 057 mm
|
Diameter of housing abutment |
| ra |
max. 5 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
819 kN
|
|---|---|---|
| Basic static load rating | C0 |
2 040 kN
|
| Fatigue load limit | Pu |
28.5 kN
|
| Reference speed |
950 r/min
|
|
| Limiting speed |
600 r/min
|
|
| Minimum load factor | kr |
0.02
|
| Calculation factor | f0 |
16.9
|
| Mass bearing |
320 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
