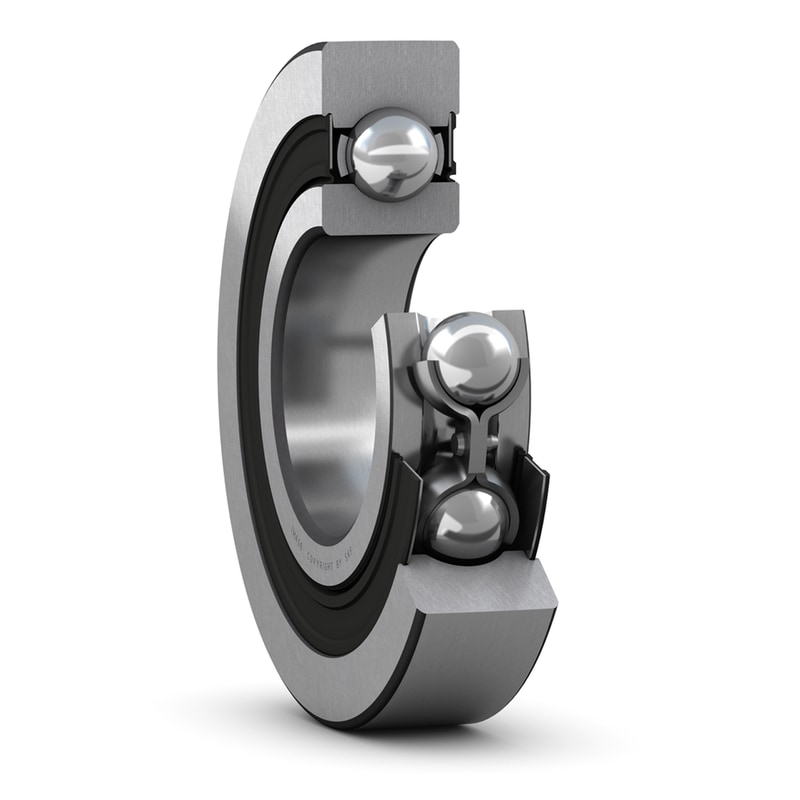

Single row cam rollers, with seals on both sides, are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single-row deep groove ball bearing and have a thick-walled outer ring with a crowned running surface. They are supplied sealed and greased for the life of the bearing, and are ready-to-mount. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
| D |
35 mm
|
Outside diameter |
|---|---|---|
| d |
12 mm
|
Bore diameter |
| B |
10 mm
|
Width |
| d1 |
≈ 18.4 mm
|
Shoulder/recess diameter inner ring |
| D1 |
≈ 27.4 mm
|
Recess diameter outer ring |
| R |
400 mm
|
Profile running surface (crown) outer ring |
| r1,2 |
min. 0.6 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
6.24 kN
|
|---|---|---|
| Basic static load rating | C0 |
2.6 kN
|
| Fatigue load limit | Pu |
0.11 kN
|
| Maximum dynamic radial load | Fr |
max. 3.35 kN
|
| Maximum static radial load | F0r |
max. 4.75 kN
|
| Limiting speed |
11 000 r/min
|
|
| Calculation factor | f0 |
12.2
|
| Mass cam roller |
0.051 kg
|
