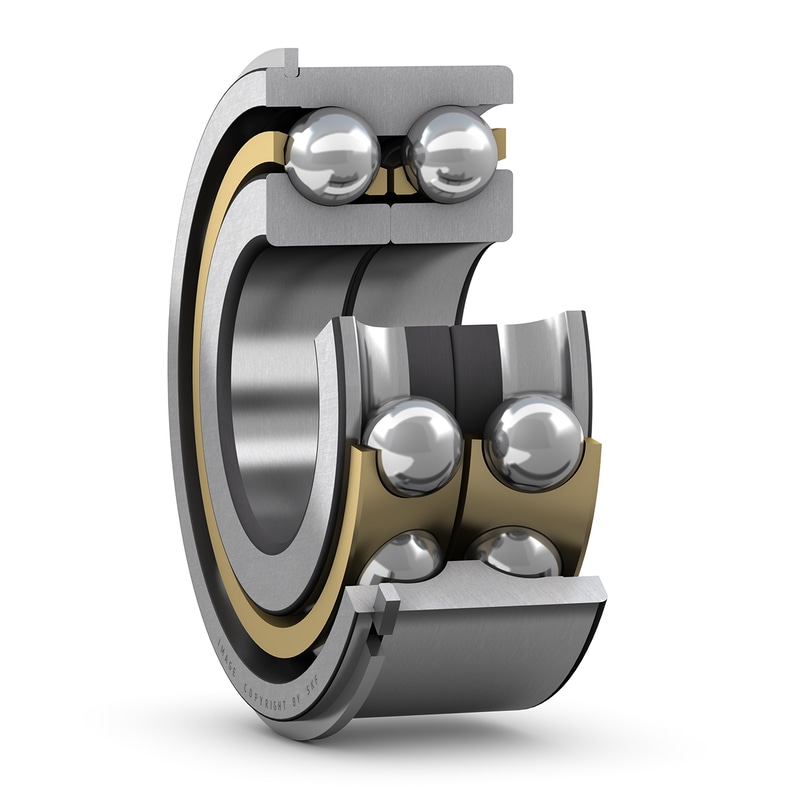

Double row angular contact ball bearings, with snap ring and split inner ring, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement. The snap ring, fitted in an annular groove in the outer ring, facilitates axial location of the bearings within their housings. The split inner ring enables incorporation of more balls, resulting in higher load carrying capacity.
| d |
45 mm
|
Bore diameter |
|---|---|---|
| D |
100 mm
|
Outside diameter |
| B |
39.7 mm
|
Width |
| d1 |
≈ 67.95 mm
|
Shoulder diameter inner ring for two-piece inner ring |
| D1 |
≈ 86.53 mm
|
Shoulder diameter outer ring |
| D3 |
96.8 mm
|
Snap ring groove diameter at outer ring |
| D4 |
106.5 mm
|
Outside diameter snap ring |
| C |
3.28 mm
|
Distance outer ring side face – snap ring groove |
| b |
2.7 mm
|
Width snap ring groove outer ring |
| f |
2.46 mm
|
Width snap ring |
| r0 |
max. 0.6 mm
|
Snap ring groove bottom radius |
| r1,2 |
min. 1.5 mm
|
Chamfer dimension inner ring for two-piece inner ring |
| a |
79 mm
|
Distance pressure point(s) |
| da |
min. 54 mm
|
Abutment diameter shaft |
|---|---|---|
| ra |
max. 1.5 mm
|
Fillet radius |
| Basic dynamic load rating | C |
61.8 kN
|
|---|---|---|
| Basic static load rating | C0 |
52 kN
|
| Fatigue load limit | Pu |
2.2 kN
|
| Reference speed |
7 500 r/min
|
|
| Limiting speed |
6 300 r/min
|
|
| Calculation factor | kr |
0.095
|
| Limiting value | e |
1.14
|
| Calculation factor | X |
0.57
|
| Calculation factor | Y0 |
0.52
|
| Calculation factor | Y1 |
0.55
|
| Calculation factor | Y2 |
0.93
|
| Mass bearing |
1.5 kg
|
