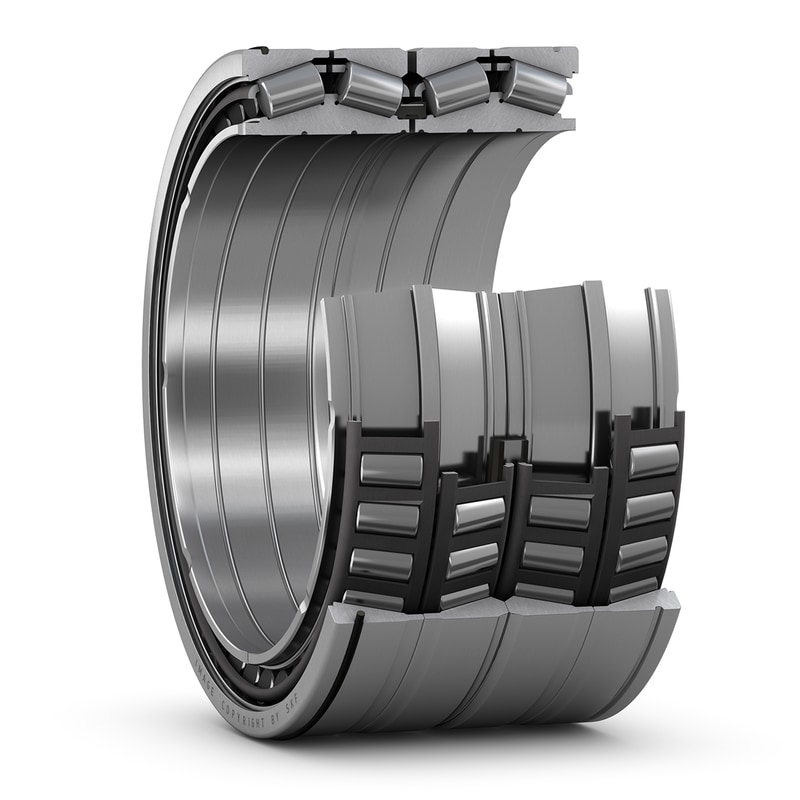

Four-row tapered roller bearings can accommodate combined heavy radial and axial loads at low to moderate speeds. They are used almost exclusively in work roll applications such as rolling mills. SKF manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.
| Design variant/feature |
TQO.1/GWI
|
| Bore type |
Cylindrical with helical groove
|
| d |
938.212 mm
|
Bore diameter |
|---|---|---|
| D |
1 270 mm
|
Outside diameter |
| B |
825.5 mm
|
Total bearing width over inner rings |
| T |
825.5 mm
|
Total bearing width over outer rings |
| d1 |
≈ 1 004 mm
|
Abutment diameter shaft |
| D1 |
≈ 1 142 mm
|
Abutment diameter housing |
| r1,2 |
min. 4.8 mm
|
Chamfer dimension inner ring |
| r3,4 |
min. 12.7 mm
|
Outer ring radius (chamfer) |
| Basic dynamic load rating | C |
28 100 kN
|
|---|---|---|
| Basic static load rating | C0 |
81 500 kN
|
| Fatigue load limit | Pu |
4 650 kN
|
| Comparative radial load rating | CF |
6 950 kN
|
| Comparative axial load rating | CFa |
1 183 kN
|
| Thrust factor | K |
1.69
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| Mass bearing |
3 230 kg
|
