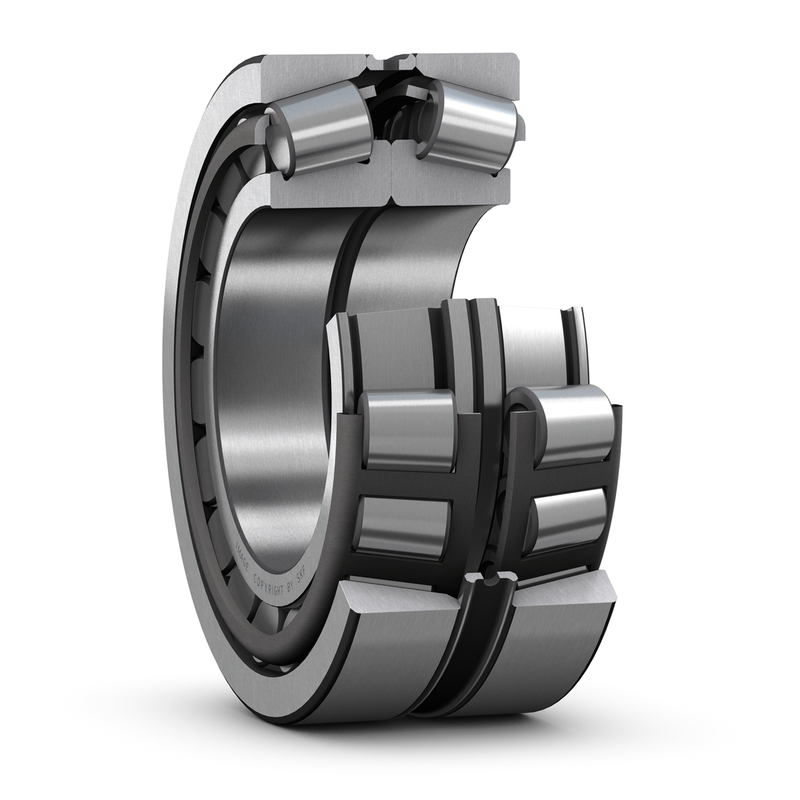

Matched tapered roller bearings arranged face-to-face (X-arrangement, load lines diverge towards the bearing axis) accommodate high radial loads and axial loads in both directions. The precision manufactured intermediate ring between the outer rings enables a defined internal clearance or preload to be achieved when mounted. Matched tapered roller bearings are typically used in gearboxes, hoisting equipment, rolling mills, and machines in the mining industry.
| d |
360 mm
|
Bore diameter |
|---|---|---|
| D |
480 mm
|
Outside diameter |
| T |
152 mm
|
Total width |
| 2B |
152 mm
|
Width of inner rings |
| b |
22 mm
|
Width of lubrication groove |
| K |
16 mm
|
Diameter of lubrication hole |
| r3,4 |
min. 3 mm
|
Chamfer dimension |
| Basic dynamic load rating | C |
2 043 kN
|
|---|---|---|
| Basic static load rating | C0 |
5 100 kN
|
| Fatigue load limit | Pu |
405 kN
|
| Reference speed |
670 r/min
|
|
| Limiting speed |
1 100 r/min
|
|
| Limiting value | e |
0.46
|
| Calculation factor | Y1 |
1.5
|
| Calculation factor | Y2 |
2.2
|
| Calculation factor | Y0 |
1.4
|
| Mass |
76.5 kg
|
