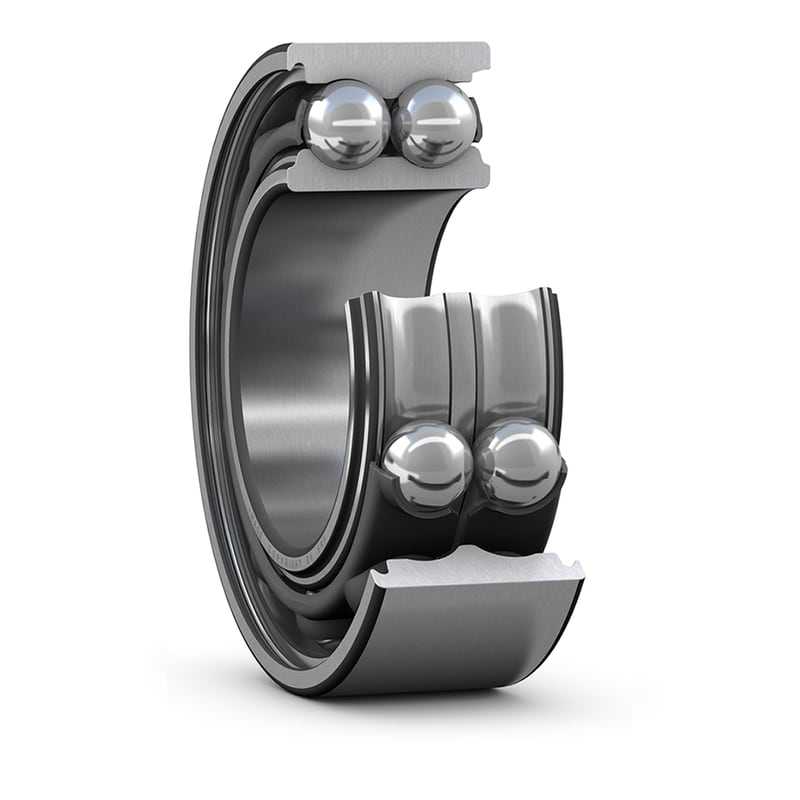

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
| Bore diameter | d |
85 mm
|
|---|---|---|
| Outside diameter | D |
150 mm
|
| Width | B |
49.2 mm
|
| Shoulder diameter inner ring | d1 |
≈ 103.73 mm
|
| Shoulder diameter outer ring | D1 |
≈ 135.19 mm
|
| Chamfer dimension inner ring | r1,2 |
min. 2 mm
|
| Distance pressure point(s) | a |
88 mm
|
| Abutment diameter shaft | da |
min. 96 mm
|
|---|---|---|
| Abutment diameter housing | Da |
max. 139 mm
|
| Fillet radius | ra |
max. 2 mm
|
| Basic dynamic load rating | C |
124 kN
|
|---|---|---|
| Basic static load rating | C0 |
110 kN
|
| Fatigue load limit | Pu |
4.4 kN
|
| Reference speed |
4 500 r/min
|
|
| Limiting speed |
3 800 r/min
|
|
| Calculation factor | kr |
0.06
|
| Limiting value | e |
0.8
|
| Calculation factor | X |
0.63
|
| Calculation factor | Y0 |
0.66
|
| Calculation factor | Y1 |
0.78
|
| Calculation factor | Y2 |
1.24
|
| Mass bearing |
3.4 kg
|
