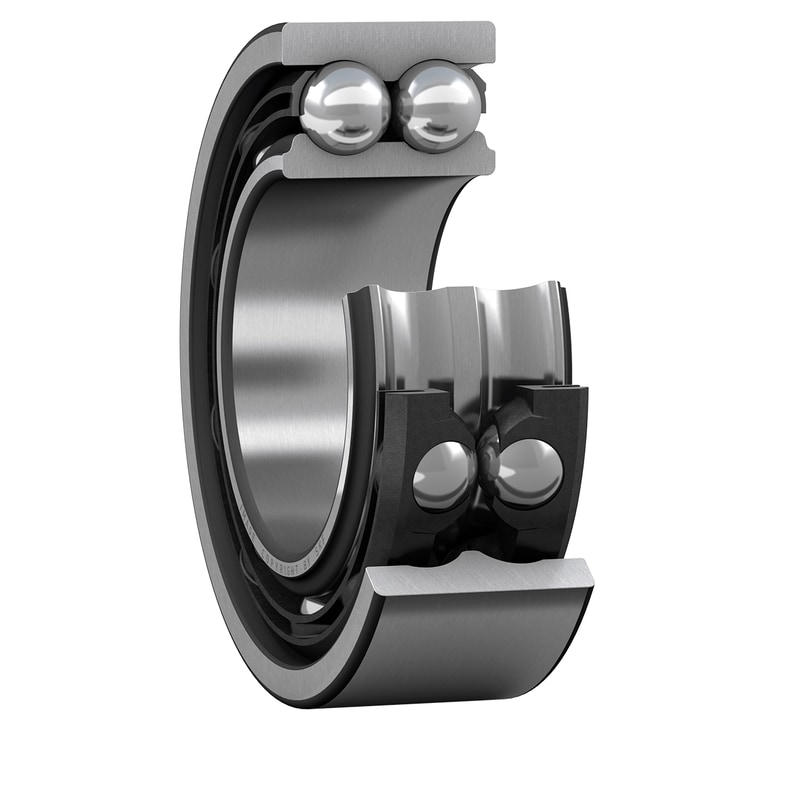

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
| d |
50 mm
|
Bore diameter |
|---|---|---|
| D |
90 mm
|
Outside diameter |
| B |
30.2 mm
|
Width |
| d2 |
≈ 57.8 mm
|
Recess diameter inner ring shoulder |
| D2 |
≈ 82.1 mm
|
Recess diameter outer ring shoulder |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension inner ring |
| a |
52 mm
|
Distance pressure point(s) |
| da |
min. 57 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 83 mm
|
Abutment diameter housing |
| ra |
max. 1 mm
|
Fillet radius |
| Basic dynamic load rating | C |
51 kN
|
|---|---|---|
| Basic static load rating | C0 |
42.5 kN
|
| Fatigue load limit | Pu |
1.8 kN
|
| Reference speed |
8 000 r/min
|
|
| Limiting speed |
7 000 r/min
|
|
| Calculation factor | kr |
0.06
|
| Limiting value | e |
0.8
|
| Calculation factor | X |
0.63
|
| Calculation factor | Y0 |
0.66
|
| Calculation factor | Y1 |
0.78
|
| Calculation factor | Y2 |
1.24
|
| Mass bearing |
0.65 kg
|
