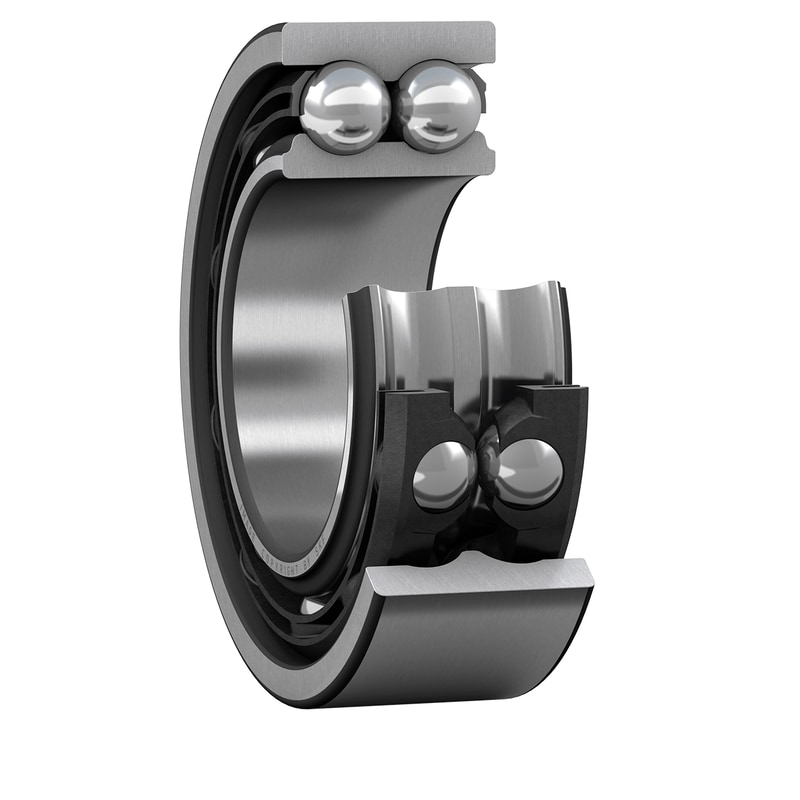

Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. They can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.
| d |
12 mm
|
Bore diameter |
|---|---|---|
| D |
32 mm
|
Outside diameter |
| B |
15.9 mm
|
Width |
| d2 |
≈ 17.2 mm
|
Recess diameter inner ring shoulder |
| D2 |
≈ 27.7 mm
|
Recess diameter outer ring shoulder |
| r1,2 |
min. 0.6 mm
|
Chamfer dimension inner ring |
| a |
19 mm
|
Distance pressure point(s) |
| da |
min. 16.4 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 27.6 mm
|
Abutment diameter housing |
| ra |
max. 0.6 mm
|
Fillet radius |
| Basic dynamic load rating | C |
10.1 kN
|
|---|---|---|
| Basic static load rating | C0 |
5.6 kN
|
| Fatigue load limit | Pu |
0.24 kN
|
| Reference speed |
24 000 r/min
|
|
| Limiting speed |
22 000 r/min
|
|
| Calculation factor | kr |
0.06
|
| Limiting value | e |
0.8
|
| Calculation factor | X |
0.63
|
| Calculation factor | Y0 |
0.66
|
| Calculation factor | Y1 |
0.78
|
| Calculation factor | Y2 |
1.24
|
| Mass bearing |
0.058 kg
|
