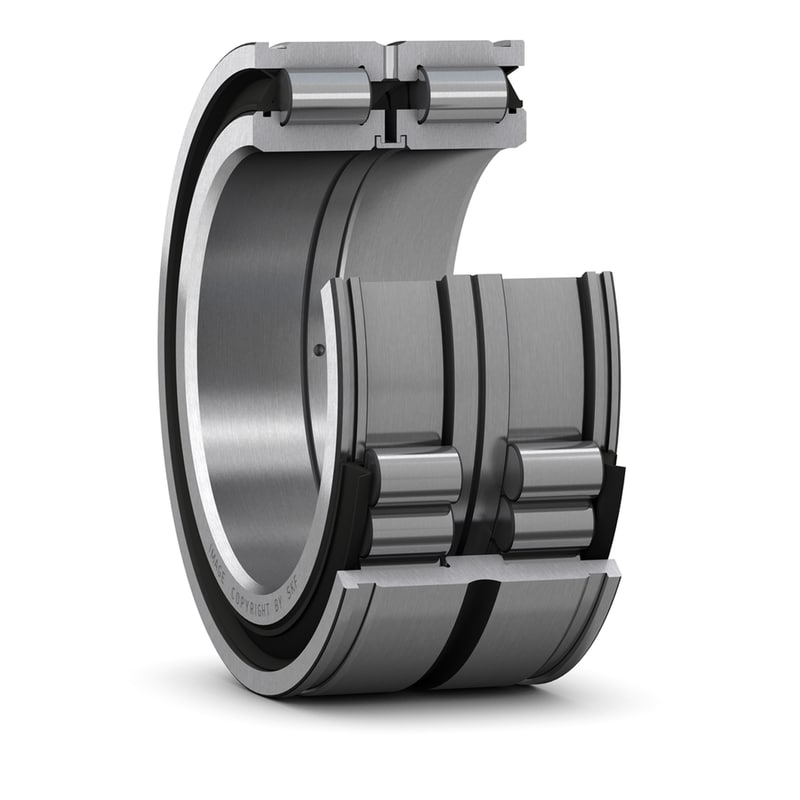

Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions. Two snap ring grooves in the outer ring simplify mounting and save space axially.
| d |
140 mm
|
Bore diameter |
|---|---|---|
| D |
200 mm
|
Outside diameter |
| B |
80 mm
|
Width |
| C |
79 mm
|
Outer ring width (sealed bearing) |
| d1 |
≈ 160 mm
|
Shoulder diameter inner ring |
| D3 |
196 mm
|
Snap ring groove diameter at outer ring |
| C1 |
71.2 mm
|
Distance between two snap ring grooves of the outer ring outside surface |
|
+ 0.2 mm
|
Tolerance for distance C1 | |
| C2 |
3.9 mm
|
Distance outer ring side face – snap ring groove (sealed bearing) |
| b |
4.2 mm
|
Width snap ring groove outer ring |
| b1 |
7 mm
|
Width annular lubrication groove outer ring |
| K |
4 mm
|
Diameter lubrication hole (outer ring) |
| r |
min. 1.8 mm
|
Chamfer dimension (sealed bearing) |
| r3,4 |
min. 0.6 mm
|
Chamfer dimension |
| da |
min. 147 mm
|
Abutment diameter shaft |
|---|---|---|
| das |
156 mm
|
Abutment diameter shaft |
| Ca1 |
65 mm
|
Abutment width applying for SW snap rings (sealed brg.) |
|
– 0.2 mm
|
Tolerance for abutment Ca (SW snap rings) | |
| Ca2 |
63 mm
|
Abutment width applying for DIN 471 snap rings (sealed brg.) |
|
– 0.2 mm
|
Tolerance for abutment Ca (DIN 471 snap rings) | |
| ra |
max. 1 mm
|
Fillet radius |
| Basic dynamic load rating | C |
468 kN
|
|---|---|---|
| Basic static load rating | C0 |
865 kN
|
| Fatigue load limit | Pu |
96.5 kN
|
| Limiting speed |
630 r/min
|
|
| Minimum load factor | kr |
0.4
|
| Mass bearing |
8 kg
|
