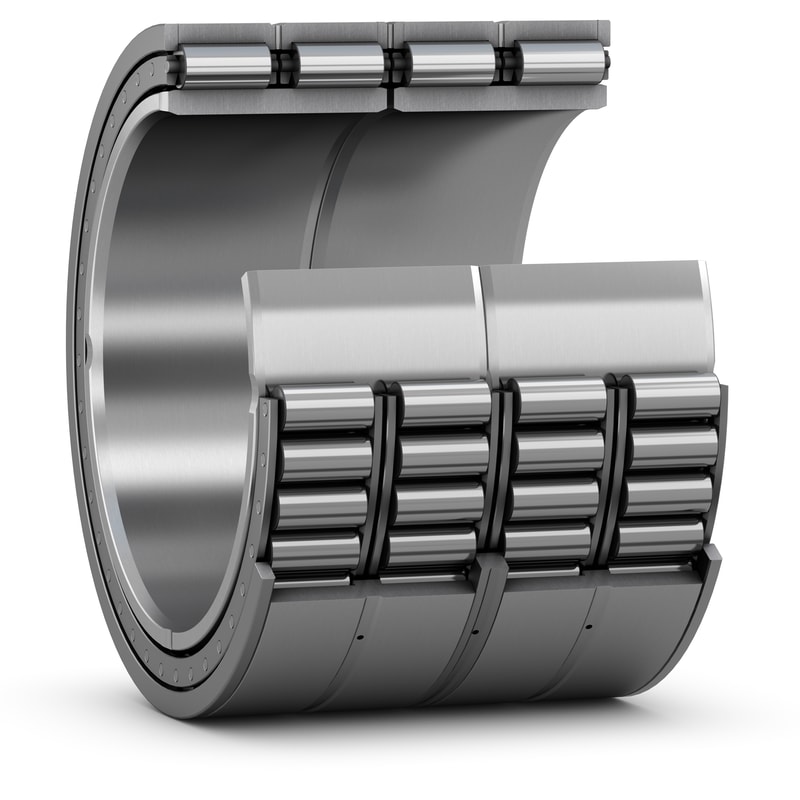

Four-row cylindrical roller bearings are designed to accommodate very heavy radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as bearings with a cage and full complement bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| Design variant/feature |
BC4.10/W33WI
|
| Bore type |
Cylindrical
|
| d |
480 mm
|
Bore diameter |
|---|---|---|
| D |
680 mm
|
Outside diameter |
| B |
420 mm
|
Total bearing width over inner ring(s) |
| C |
420 mm
|
Total bearing width over outer ring(s) |
| D1 |
≈ 620.7 mm
|
Bore diameter loose flange ring |
| F |
528 mm
|
Raceway diameter inner ring |
| b |
16.7 mm
|
Width of annular groove |
| K |
9 mm
|
Diameter lubrication hole (outer ring) |
| r1,2 |
min. 12 mm
|
Corner radius/chamfer inner ring |
| r3,4 |
min. 3 mm
|
Chamfer dimension on the outer ring |
| Basic dynamic load rating | C |
9 130 kN
|
|---|---|---|
| Basic static load rating | C0 |
19 300 kN
|
| Fatigue load limit | Pu |
1 500 kN
|
| Calculation factor | kr |
570
|
| Mass bearing |
496 kg
|
