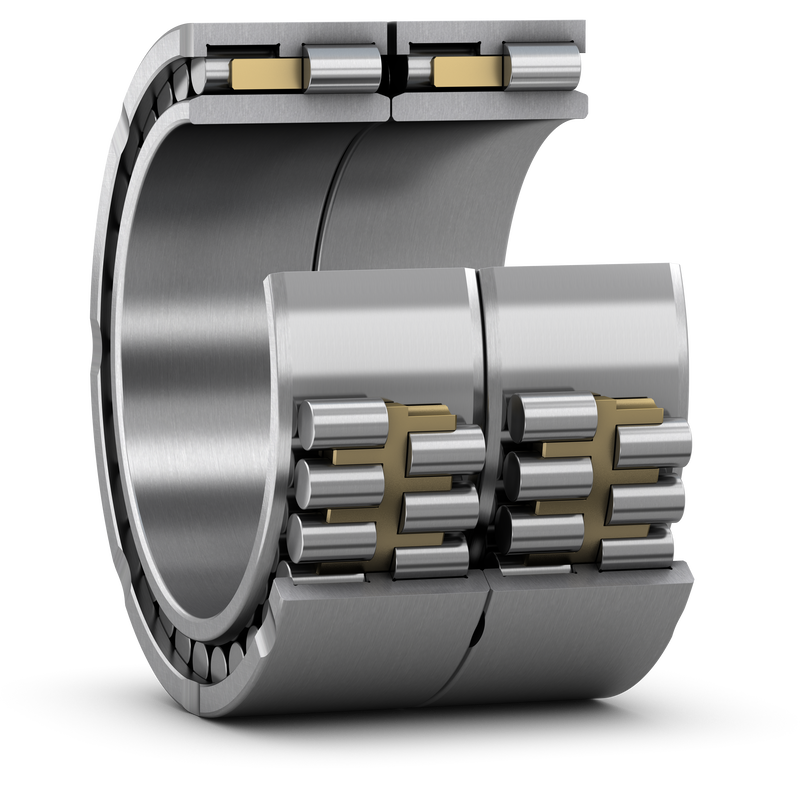

Four-row cylindrical roller bearings are designed to accommodate very heavy radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as bearings with a cage and full complement bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| Design variant/feature |
BC4.7/WO
|
| Bore type |
Cylindrical
|
| d |
500 mm
|
Bore diameter |
|---|---|---|
| D |
650 mm
|
Outside diameter |
| B |
260 mm
|
Total bearing width over inner ring(s) |
| C |
260 mm
|
Total bearing width over outer ring(s) |
| D1 |
≈ 599.6 mm
|
Outer ring shoulder diameter |
| F |
542 mm
|
Raceway diameter inner ring |
| r1,2 |
min. 5 mm
|
Corner radius/chamfer inner ring |
| r3,4 |
min. 5 mm
|
Chamfer dimension on the outer ring |
| Basic dynamic load rating | C |
4 400 kN
|
|---|---|---|
| Basic static load rating | C0 |
10 200 kN
|
| Fatigue load limit | Pu |
850 kN
|
| Calculation factor | kr |
310
|
| Mass bearing |
225 kg
|
