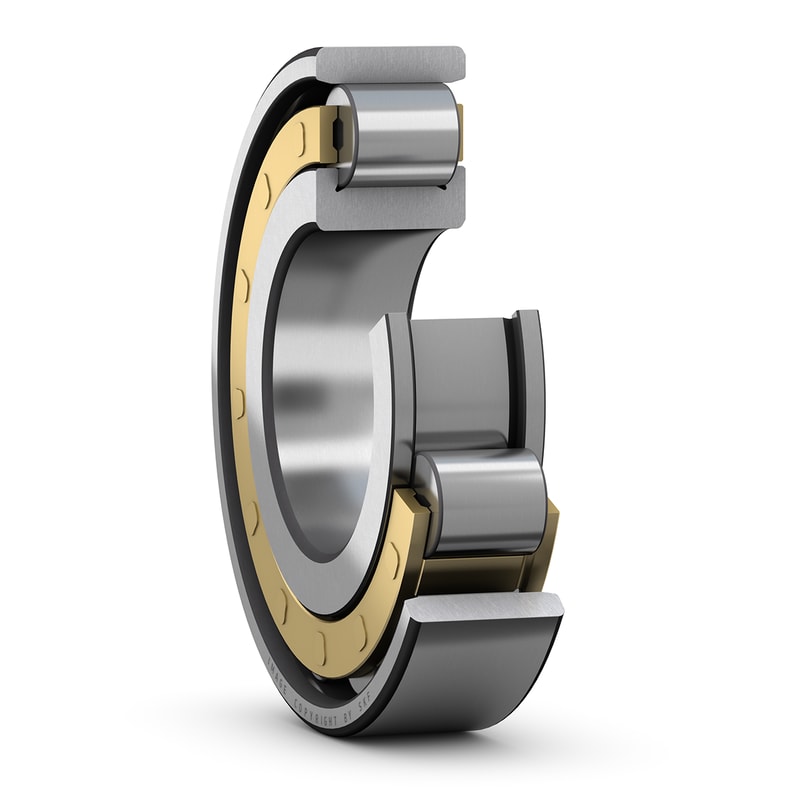

Single row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard, full complement and high capacity bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| d |
630 mm
|
Bore diameter |
|---|---|---|
| D |
780 mm
|
Outside diameter |
| B |
56 mm
|
Width |
| d1 |
≈ 688 mm
|
Shoulder diameter of inner ring |
| E |
737 mm
|
Raceway diameter of outer ring |
| r1,2 |
min. 4 mm
|
Chamfer dimension |
| s |
max. 5.6 mm
|
Permissible axial displacement |
| da |
min. 645 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max. 730 mm
|
Diameter of spacer sleeve |
| Da |
min. 741 mm
|
Diameter of housing abutment |
| Da |
max. 765 mm
|
Diameter of housing abutment |
| ra |
max. 3 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
605 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 290 kN
|
| Fatigue load limit | Pu |
85 kN
|
| Reference speed |
1 700 r/min
|
|
| Minimum load factor | kr |
0.03
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0
|
| Mass |
55 kg
|
