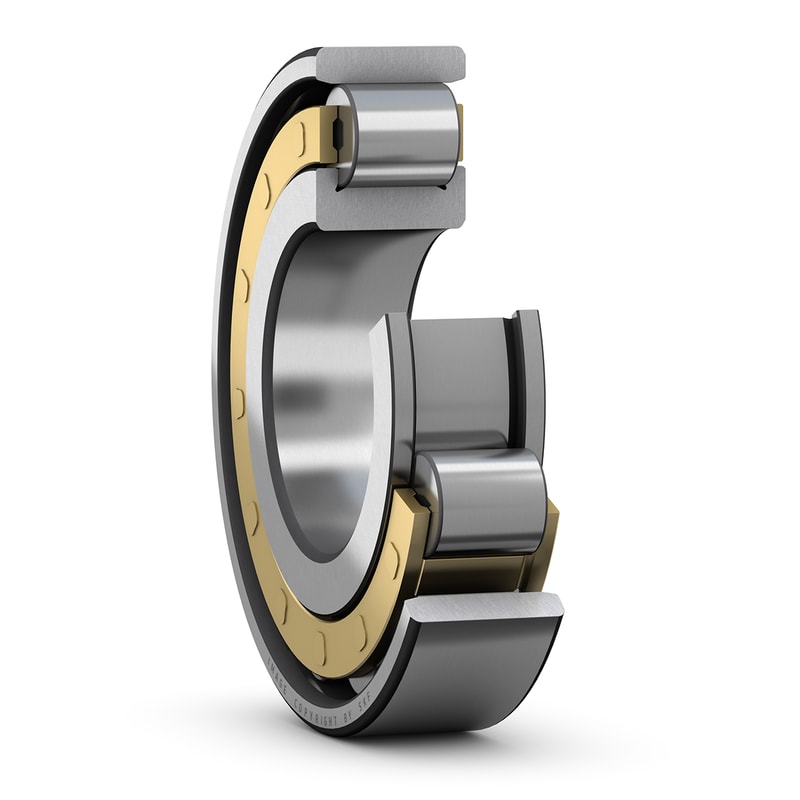

Single row cylindrical roller bearings are designed to accommodate high to very high radial loads in combination with medium to high speeds. The SKF assortment includes many designs and variants, such as standard, full complement and high capacity bearings. Depending on the configuration of the outer and inner rings, the bearings are available in locating as well as non-locating designs.
| d |
820 mm
|
Bore diameter |
|---|---|---|
| D |
990 mm
|
Outside diameter |
| B |
72 mm
|
Width |
| d1 |
≈ 885 mm
|
Shoulder diameter of inner ring |
| E |
943 mm
|
Raceway diameter of outer ring |
| r1,2 |
min. 5 mm
|
Chamfer dimension |
| s |
max. 9.3 mm
|
Permissible axial displacement |
| da |
min. 840 mm
|
Diameter of spacer sleeve |
|---|---|---|
| da |
max. 937 mm
|
Diameter of spacer sleeve |
| Da |
min. 944 mm
|
Diameter of housing abutment |
| Da |
max. 970 mm
|
Diameter of housing abutment |
| ra |
max. 4 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
858 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 960 kN
|
| Fatigue load limit | Pu |
112 kN
|
| Reference speed |
1 200 r/min
|
|
| Minimum load factor | kr |
0.02
|
| Limiting value | e |
0.2
|
| Calculation factor | Y |
0
|
| Mass |
100 kg
|
