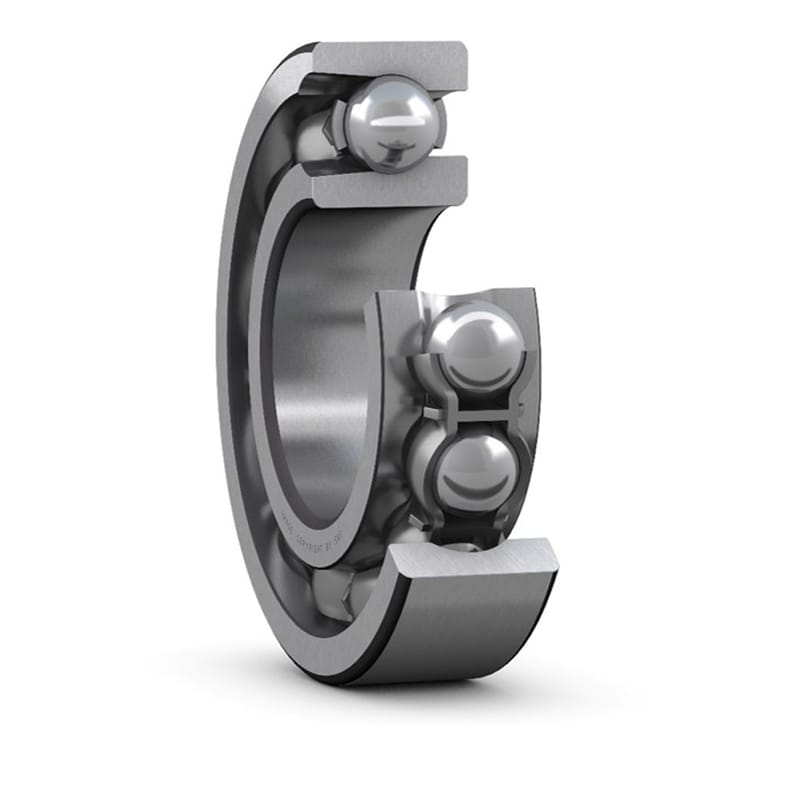

Single row deep groove ball bearings with filling slots accommodate more balls than standard deep groove ball bearings. They are of a simple, yet versatile, design and are robust in operation, requiring little maintenance. They can accommodate radial and axial loads in both directions. They have a higher radial load carrying capacity than the corresponding bearings without filling slots but have a limited axial load carrying capacity due to the filling slots.
| d |
70 mm
|
Bore diameter |
|---|---|---|
| D |
150 mm
|
Outside diameter |
| B |
35 mm
|
Width |
| d1 |
≈ 93.75 mm
|
Shoulder diameter |
| D2 |
≈ 129.9 mm
|
Recess diameter |
| r1,2 |
min. 2.1 mm
|
Chamfer dimension |
| da |
min. 82 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 138 mm
|
Diameter of housing abutment |
| ra |
max. 2 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
114 kN
|
|---|---|---|
| Basic static load rating | C0 |
102 kN
|
| Fatigue load limit | Pu |
4.15 kN
|
| Reference speed |
8 000 r/min
|
|
| Limiting speed |
5 000 r/min
|
|
| Minimum load factor | kr |
0.05
|
| Mass bearing |
2.75 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
