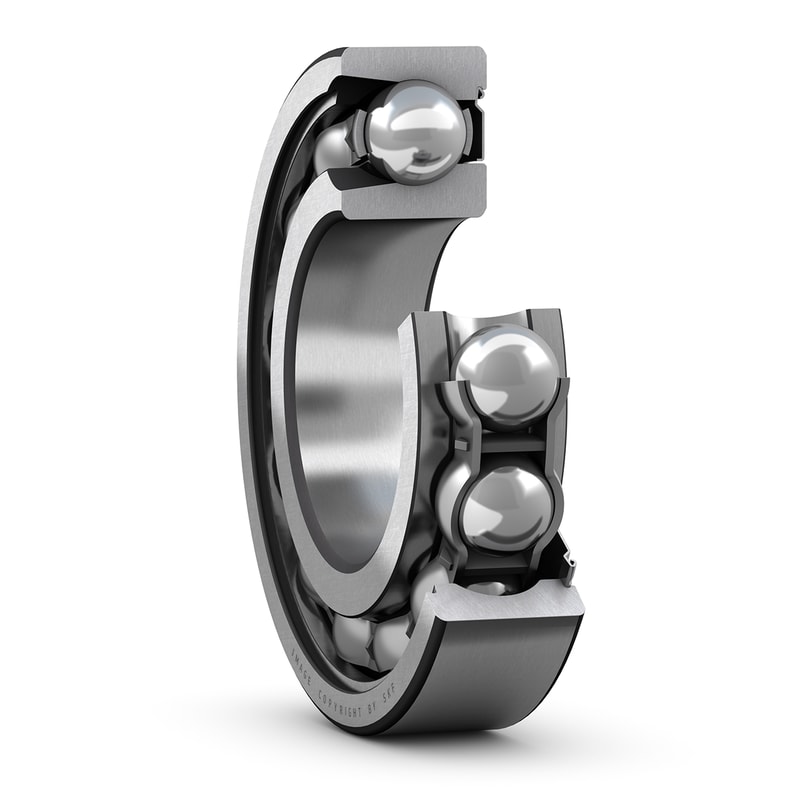

Single row deep groove ball bearings with filling slots and shields on one or both sides, accommodate more balls than standard deep groove ball bearings. They are of a simple, yet versatile, design and are robust in operation, requiring little maintenance. They can accommodate radial and axial loads in both directions. They have a higher radial load carrying capacity than the corresponding bearings without filling slots but have a limited axial load carrying capacity due to the filling slots. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
| d |
50 mm
|
Bore diameter |
|---|---|---|
| D |
110 mm
|
Outside diameter |
| B |
27 mm
|
Width |
| d1 |
≈ 68.76 mm
|
Shoulder diameter |
| D2 |
≈ 95.2 mm
|
Recess diameter |
| r1,2 |
min. 2 mm
|
Chamfer dimension |
| da |
min. 61 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 68.6 mm
|
Diameter of shaft abutment |
| Da |
max. 99 mm
|
Diameter of housing abutment |
| ra |
max. 2 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
64.4 kN
|
|---|---|---|
| Basic static load rating | C0 |
52 kN
|
| Fatigue load limit | Pu |
2.2 kN
|
| Reference speed |
11 000 r/min
|
|
| Limiting speed |
7 000 r/min
|
|
| Minimum load factor | kr |
0.05
|
| Mass bearing |
1.15 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
