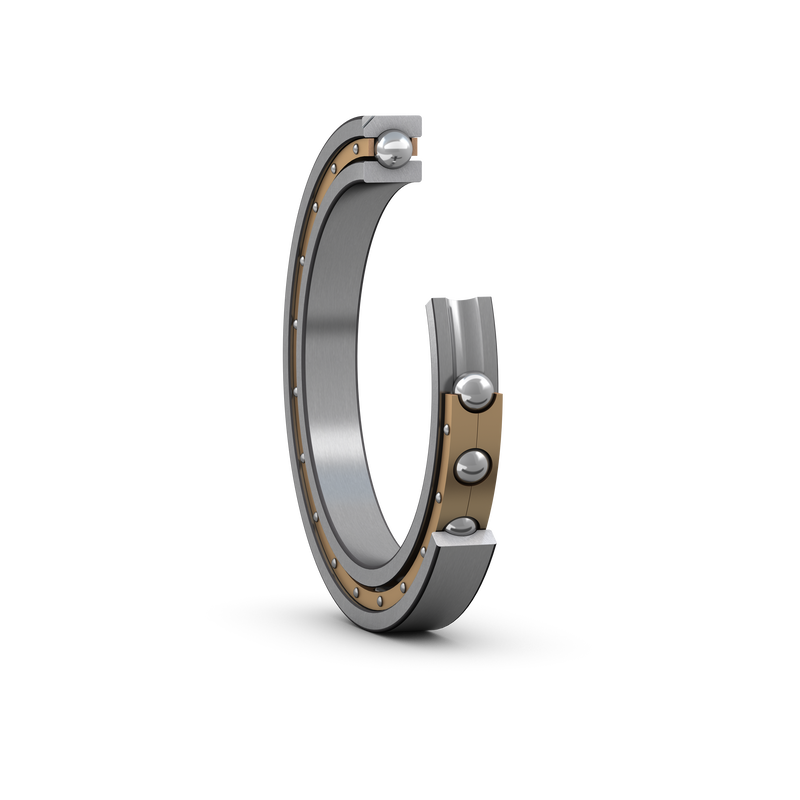

Single row deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
| d |
650 mm
|
Bore diameter |
|---|---|---|
| D |
920 mm
|
Outside diameter |
| B |
118 mm
|
Width |
| d1 |
≈ 737 mm
|
Shoulder diameter |
| D1 |
≈ 830.8 mm
|
Shoulder diameter |
| h |
32 mm
|
Depth of locating slot |
| b |
20.5 mm
|
Width of locating slot |
| r0 |
3 mm
|
Corner radius of locating slot |
| r1,2 |
min. 6 mm
|
Chamfer dimension |
| da |
min. 673 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 897 mm
|
Diameter of housing abutment |
| ra |
max. 5 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
780 kN
|
|---|---|---|
| Basic static load rating | C0 |
1 730 kN
|
| Fatigue load limit | Pu |
26 kN
|
| Reference speed |
1 200 r/min
|
|
| Limiting speed |
750 r/min
|
|
| Minimum load factor | kr |
0.02
|
| Calculation factor | f0 |
16.5
|
| Mass bearing |
250 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
