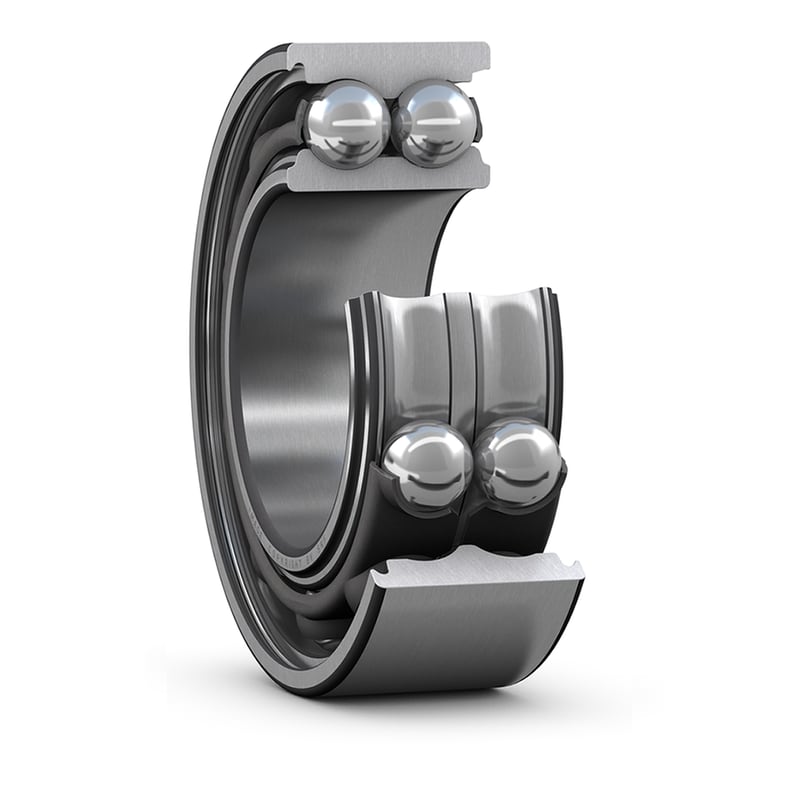

Double row angular contact ball bearing, with two-piece inner ring and relubrication feature, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement. The two-piece inner ring enables incorporation of more balls, resulting in higher load carrying capacity. The annular lubrication groove and holes in the outer ring facilitates relubrication.
| d |
180 mm
|
Bore diameter |
|---|---|---|
| D |
250 mm
|
Outside diameter |
| B |
70 mm
|
Width |
| d1 |
≈ 207.45 mm
|
Shoulder diameter inner ring for two-piece inner ring |
| D1 |
≈ 234.7 mm
|
Shoulder diameter outer ring |
| b |
11.7 mm
|
Width annular lubrication groove at outer ring |
| K |
6 mm
|
Diameter lubrication hole (outer ring) |
| r1,2 |
min. 2 mm
|
Chamfer dimension inner ring for two-piece inner ring |
| a |
216 mm
|
Distance pressure point(s) |
| da |
min. 185 mm
|
Abutment diameter shaft |
|---|---|---|
| Da |
max. 232 mm
|
Abutment diameter housing |
| ra |
max. 2 mm
|
Fillet radius |
| Basic dynamic load rating | C |
190 kN
|
|---|---|---|
| Basic static load rating | C0 |
285 kN
|
| Fatigue load limit | Pu |
8.65 kN
|
| Reference speed |
2 400 r/min
|
|
| Limiting speed |
2 600 r/min
|
|
| Calculation factor | kr |
0.095
|
| Limiting value | e |
1.14
|
| Calculation factor | X |
0.57
|
| Calculation factor | Y0 |
0.52
|
| Calculation factor | Y1 |
0.55
|
| Calculation factor | Y2 |
0.93
|
| Mass bearing |
9.67 kg
|
