SIZE RANGE: 2 – 24 inch (50 mm – 600 mm)
MAX TEMP: 180°F (82°C)
MAX PRESSURE: 180 PSI 2-12 / 150 PSI 14-24

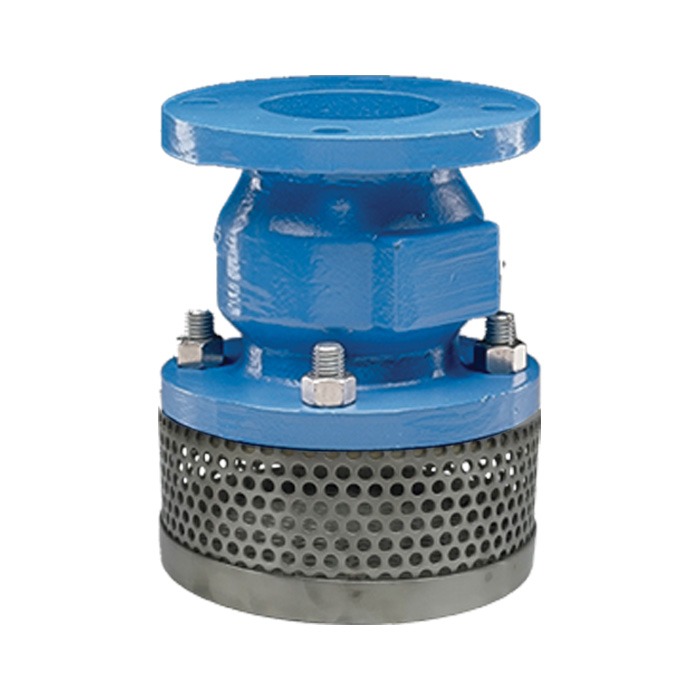

302BT – Epoxy coated ductile iron, foot valve with a globe style body design for use with class 150 flanges. Unleaded bronze trim with an EPDM seal and 316 stainless steel strainer for 2″” – 12″” sizes. Stainless Steel trim and resilient seat standard on 16″”, 20″”, 24″” sizes (ST Models). Available on other sizes optional. See note below.
Ductile Iron 2″” – 12″” – Max Pressure 180 PSI at 180°F
Cast Iron 14″” – 24″” – Max Pressure 150 PSI at 180°F
| Part Number | Size | None | List Price |
|---|---|---|---|
| 4763BT | 2″” | 17 | $1,257 |
| 4768BT | 2 1/2″” | 24 | $1,271 |
| 4769BT | 3″” | 29 | $1,322 |
| 4770BT | 4″” | 48 | $1,629 |
| 4771BT | 5″” | 64 | $2,244 |
| 4772BT | 6″” | 89 | $2,479 |
| 4774BT | 8″” | 142 | $3,621 |
| 4775BT | 10″” | 226 | $5,472 |
| 5416BT | 12″” | 324 | $8,416 |
| 5417BT | 14″” | 500 | POA |
| 5418ST | 16″” | 650 | $33,992 |
| 5419BT | 18″” | 850 | POA |
| 5420ST | 20″” | 1,050 | $42,584 |
| 5422ST | 24″” | 1,440 | $64,033 |
