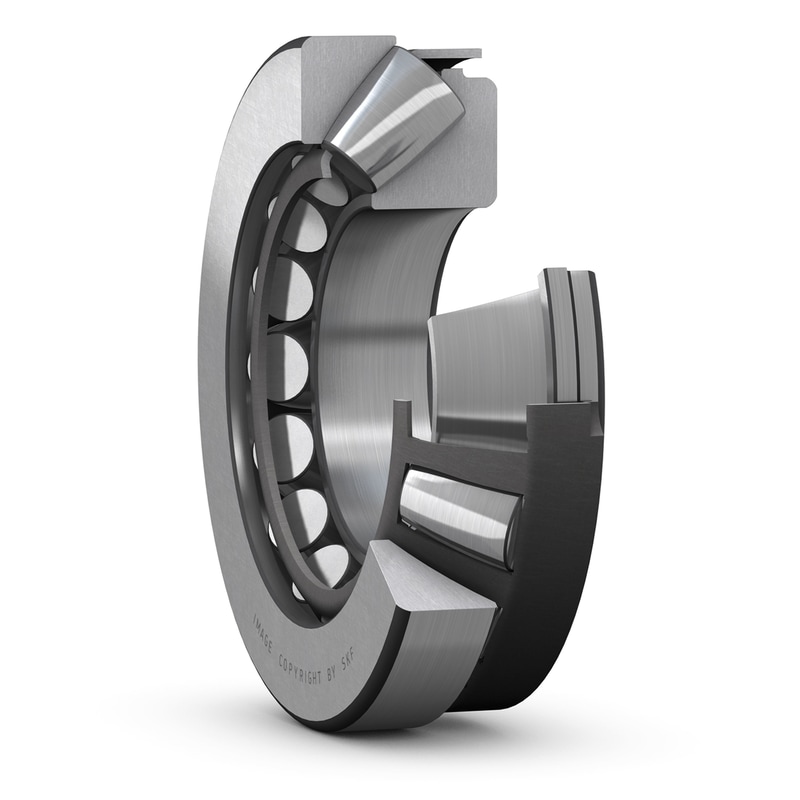

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
| d |
320 mm
|
Bore diameter |
|---|---|---|
| D |
580 mm
|
Outside diameter |
| H |
155 mm
|
Height |
| d1 |
≈ 520 mm
|
Outside diameter of shaft washer end side face |
| D1 |
≈ 422 mm
|
Shoulder diameter outer ring |
| B |
102 mm
|
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a stamped steel cage) |
| B1 |
139.4 mm
|
Height shaft washer + cage |
| C |
74.5 mm
|
Height housing washer |
| s |
191 mm
|
Distance from shaft washer end side face to pressure point |
| r1,2 |
min. 7.5 mm
|
Chamfer dimension shaft washer |
| da |
min. 450 mm
|
Diameter of shaft abutment |
|---|---|---|
| db1 |
max. 344 mm
|
Abutment diameter of spacer ring |
| db2 |
max. 367 mm
|
Outside diameter of spacer ring |
| Da |
max. 500 mm
|
Diameter of housing abutment |
| ra |
max. 6 mm
|
Fillet radius |
| Basic dynamic load rating | C |
5 700 kN
|
|---|---|---|
| Basic static load rating | C0 |
19 000 kN
|
| Fatigue load limit | Pu |
1 530 kN
|
| Reference speed |
600 r/min
|
|
| Limiting speed |
1 100 r/min
|
|
| Minimum axial load factor | A |
32
|
| Mass bearing |
175 kg
|
