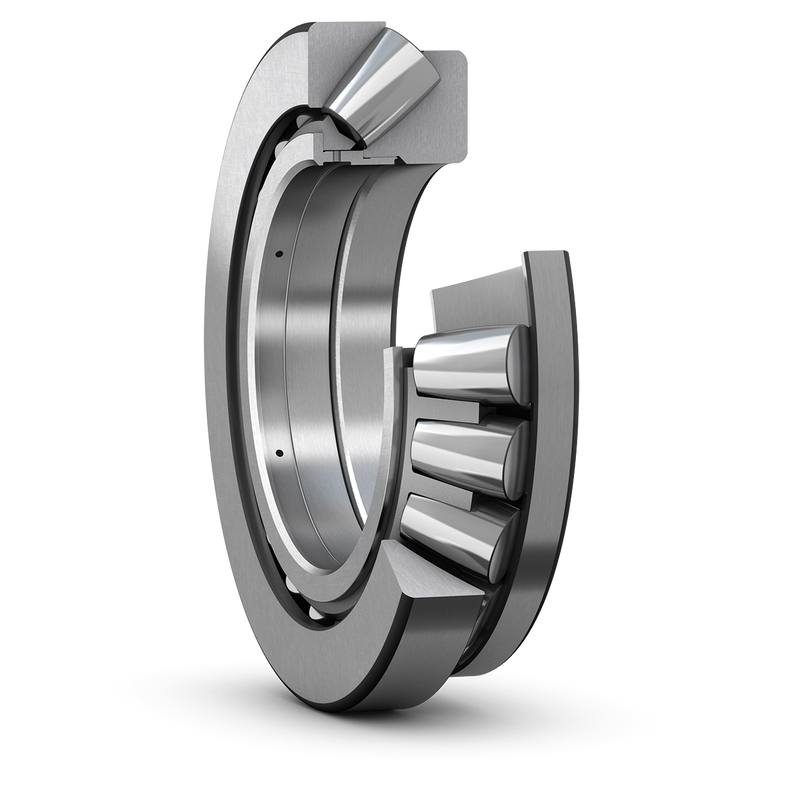

Spherical roller thrust bearings accommodate very heavy axial and considerable radial loads. They have the highest load rating of all thrust bearings, enabling compact, high power density bearing arrangements. By combining two or more spherical roller thrust bearings, it is possible to create a bearing arrangement that is either self-aligning, allowing misalignment of the shaft, or very stiff.
| d |
750 mm
|
Bore diameter |
|---|---|---|
| D |
1 280 mm
|
Outside diameter |
| H |
315 mm
|
Height |
| d1 |
≈ 1 170 mm
|
Outside diameter of shaft washer end side face |
| D1 |
≈ 964 mm
|
Shoulder diameter outer ring |
| B |
121 mm
|
Width shaft washer or length of shaft washer bore diameter that fits on shaft (bearings with a machined cage) |
| B1 |
305 mm
|
Height shaft washer + cage |
| C |
153 mm
|
Height housing washer |
| s |
436 mm
|
Distance from shaft washer end side face to pressure point |
| r1,2 |
min. 15 mm
|
Chamfer dimension shaft washer |
| da |
min. 1 015 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 1 120 mm
|
Diameter of housing abutment |
| ra |
max. 12 mm
|
Fillet radius |
| Basic dynamic load rating | C |
18 700 kN
|
|---|---|---|
| Basic static load rating | C0 |
85 000 kN
|
| Fatigue load limit | Pu |
5 500 kN
|
| Reference speed |
200 r/min
|
|
| Limiting speed |
400 r/min
|
|
| Minimum axial load factor | A |
690
|
| Mass bearing |
1 650 kg
|
