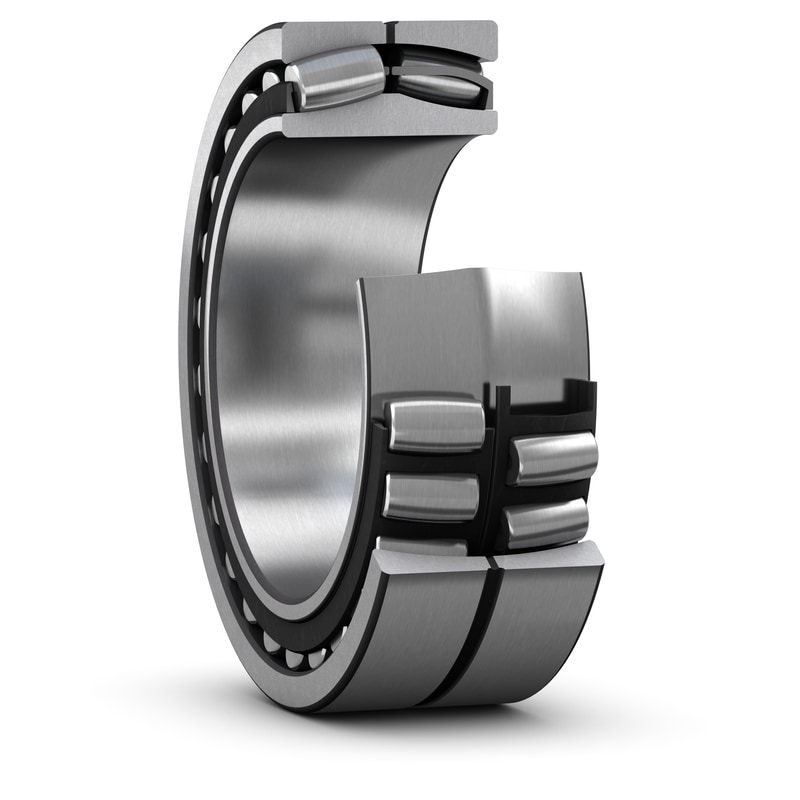

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This variant is optimized for use in continuous casters in the metals industry. The design includes features to facilitate relubrication. The bearings are developed for very slow rotation speed.
| Bore type |
Cylindrical
|
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
210 mm
|
Outside diameter |
| B |
80 mm
|
Width |
| d2 |
≈ 146 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 180 mm
|
Shoulder/recess diameter of outer ring |
| b |
6 mm
|
Width of lubrication groove |
| K |
3 mm
|
Diameter of lubrication hole |
| r1,2 |
min. 2 mm
|
Chamfer dimension |
| da |
min. 141 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 199 mm
|
Diameter of housing abutment |
| ra |
max. 2 mm
|
Radius of fillet |
| Basic static load rating | C0 |
1 000 kN
|
|---|---|---|
| Limiting speed |
20 r/min
|
|
| Calculation factor | Y0 |
1.8
|
| Mass |
10.5 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
