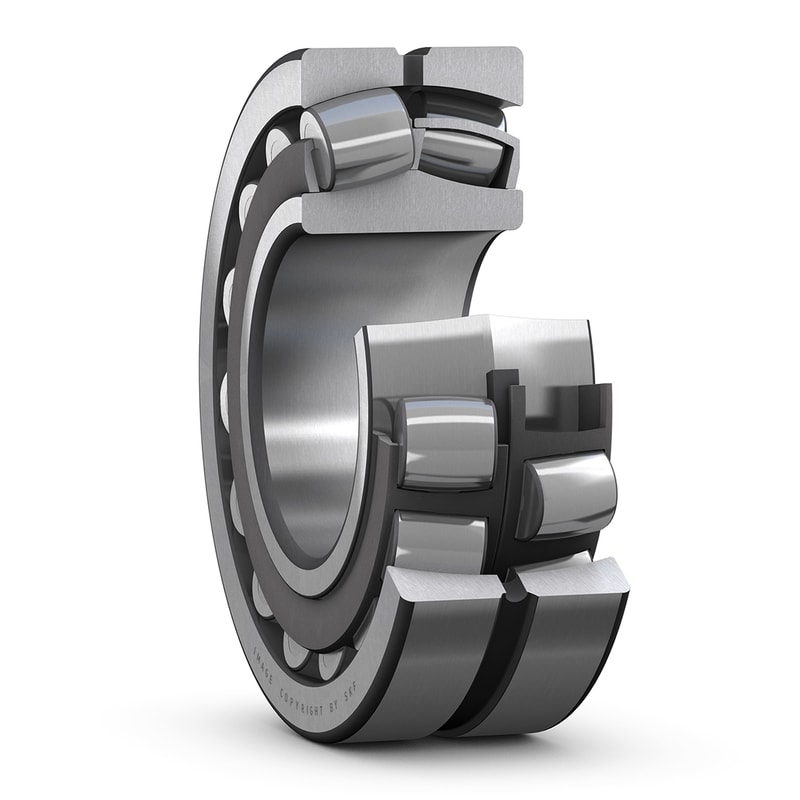

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
| SKF performance class |
SKF Explorer
|
| Bore type |
Cylindrical
|
| d |
260 mm
|
Bore diameter |
|---|---|---|
| D |
400 mm
|
Outside diameter |
| B |
140 mm
|
Width |
| d2 |
≈ 289 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 347 mm
|
Shoulder/recess diameter of outer ring |
| b |
13.9 mm
|
Width of lubrication groove |
| K |
7.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min. 4 mm
|
Chamfer dimension |
| da |
min. 275 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 385 mm
|
Diameter of housing abutment |
| ra |
max. 3 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
2 135 kN
|
|---|---|---|
| Basic static load rating | C0 |
3 450 kN
|
| Fatigue load limit | Pu |
285 kN
|
| Reference speed |
1 000 r/min
|
|
| Limiting speed |
2 200 r/min
|
|
| Limiting value | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
| Mass |
63.5 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
P5
|
