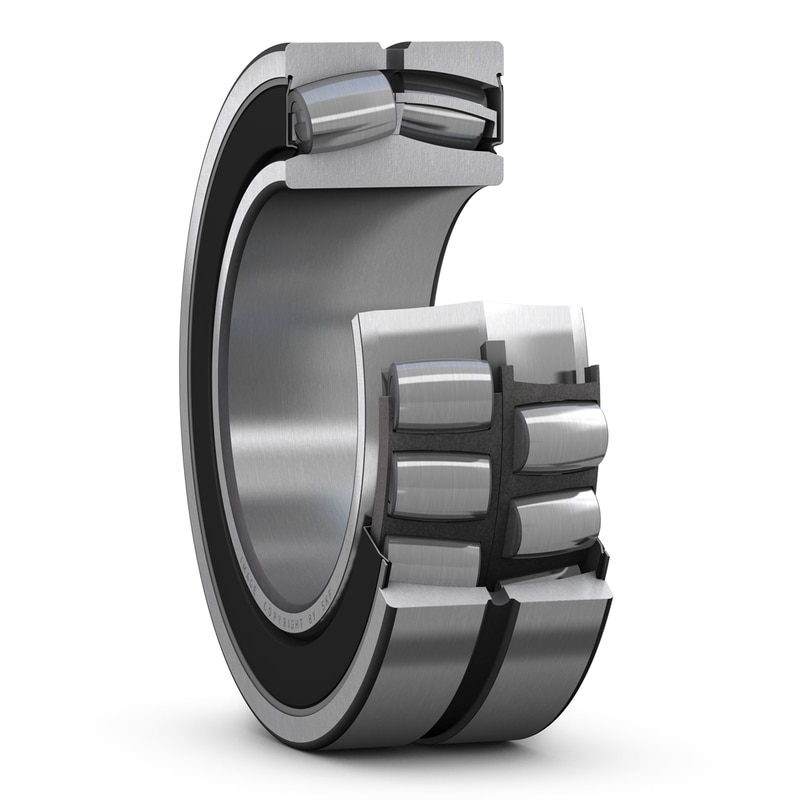

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low.
| SKF performance class |
SKF Explorer
|
| Bore type |
Cylindrical
|
| d |
65 mm
|
Bore diameter |
|---|---|---|
| D |
100 mm
|
Outside diameter |
| B |
35 mm
|
Width |
| d2 |
≈ 71.6 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 93.5 mm
|
Shoulder/recess diameter of outer ring |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| da |
min. 71 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 71.5 mm
|
Diameter of shaft abutment |
| Da |
max. 94 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
137 kN
|
|---|---|---|
| Basic static load rating | C0 |
173 kN
|
| Fatigue load limit | Pu |
20.4 kN
|
| Limiting speed |
2 600 r/min
|
|
| Limiting value | e |
0.27
|
| Calculation factor | Y1 |
2.5
|
| Calculation factor | Y2 |
3.7
|
| Calculation factor | Y0 |
2.5
|
| Mass |
0.95 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
P5
|
