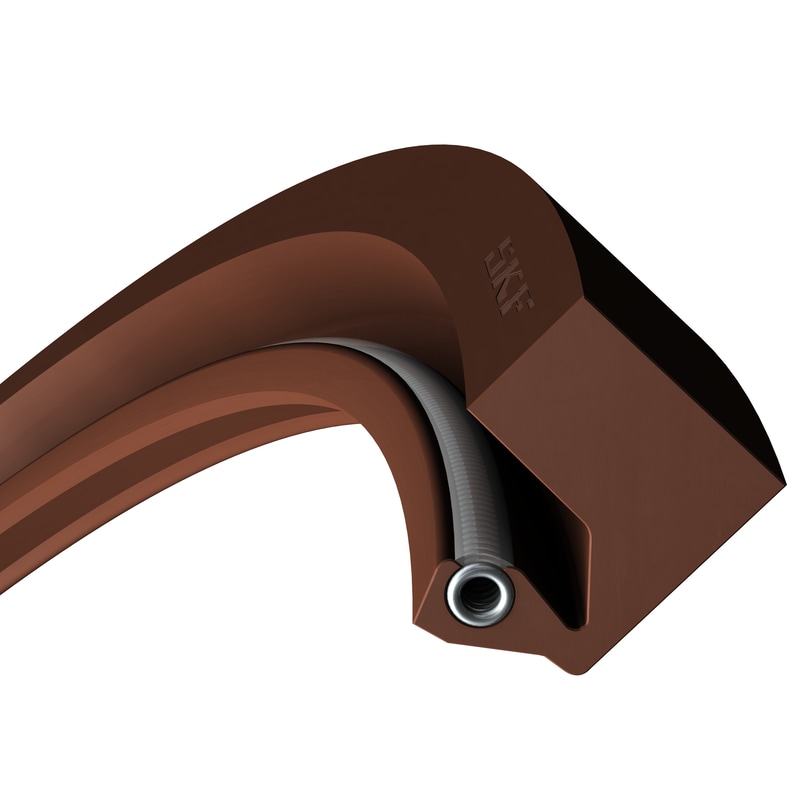

2400-2556-40 HS5 VRadial shaft seal for heavy industrial applications, all-rubber
HS5 seals are designed for housings with a cover plate. The SKF Springcover provides reliable spring retention for a blind seal installation. These seals perform exceptionally well in very large-size machinery, and customized or heavy-duty machinery. They are designed for industries such as metal, construction, wind energy, forestry, mining, and pulp and paper.
Properties
| Metric/inch series |
Inch
|
| Design name |
HS5
|
| Design type |
Solid
|
| Type of outside diameter |
All-rubber
|
| Installation |
Cover plate
|
| Auxiliary lip |
No
|
| SKF Springcover |
Yes
|
| Sealing lip material |
Fluoro rubber (FKM)
|
| Garter spring material |
Stainless steel
|
| US stock number |
2400455
|
Dimensions
| d1 |
609.6 mm
|
Shaft diameter |
|---|---|---|
| D |
657.225 mm
|
Housing diameter |
| B |
15.875 mm
|
Housing width |
Application and operating conditions
| Operating temperature |
min. -18 °C
|
| Operating temperature |
max. 200 °C
|
| Circumferential speed |
max. 13 m/s
|
| Rotational speed |
max. 407 r/min
|
| Pressure differential |
max. 0.07 N/mm²
|
