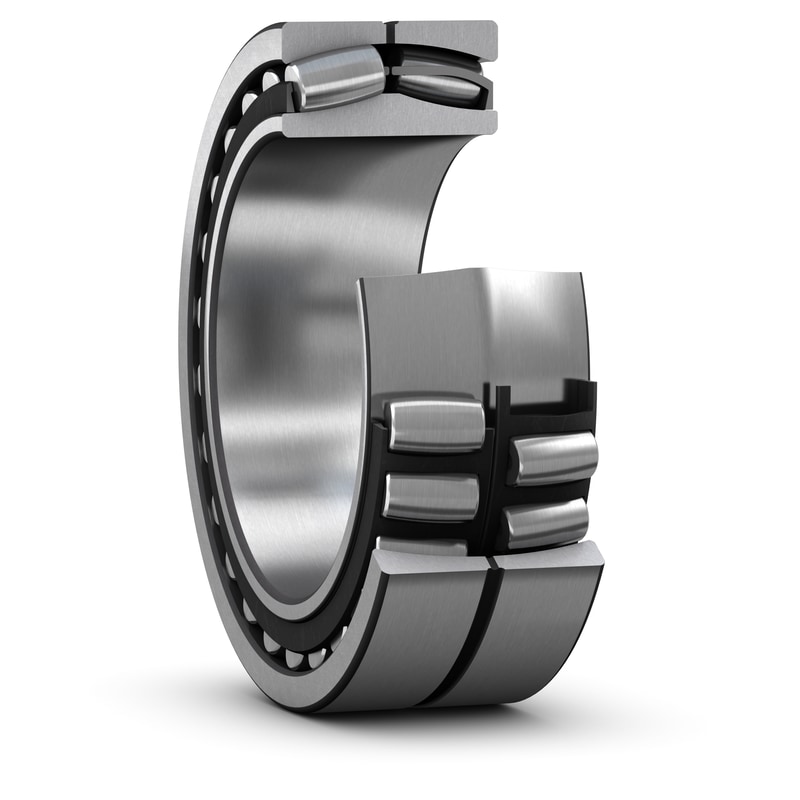

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This variant is optimized for use in continuous casters in the metals industry. The design includes features to facilitate relubrication. The bearings are developed for very slow rotation speed.
| Bore type |
Cylindrical
|
| d |
100 mm
|
Bore diameter |
|---|---|---|
| D |
180 mm
|
Outside diameter |
| B |
60.3 mm
|
Width |
| d2 |
≈ 117 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 153 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min. 2.1 mm
|
Chamfer dimension |
| da |
min. 112 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 168 mm
|
Diameter of housing abutment |
| ra |
max. 2 mm
|
Radius of fillet |
| Basic static load rating | C0 |
600 kN
|
|---|---|---|
| Limiting speed |
20 r/min
|
|
| Limiting value | e |
0.33
|
| Calculation factor | Y1 |
2
|
| Calculation factor | Y2 |
3
|
| Calculation factor | Y0 |
2
|
| Mass |
6.71 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
