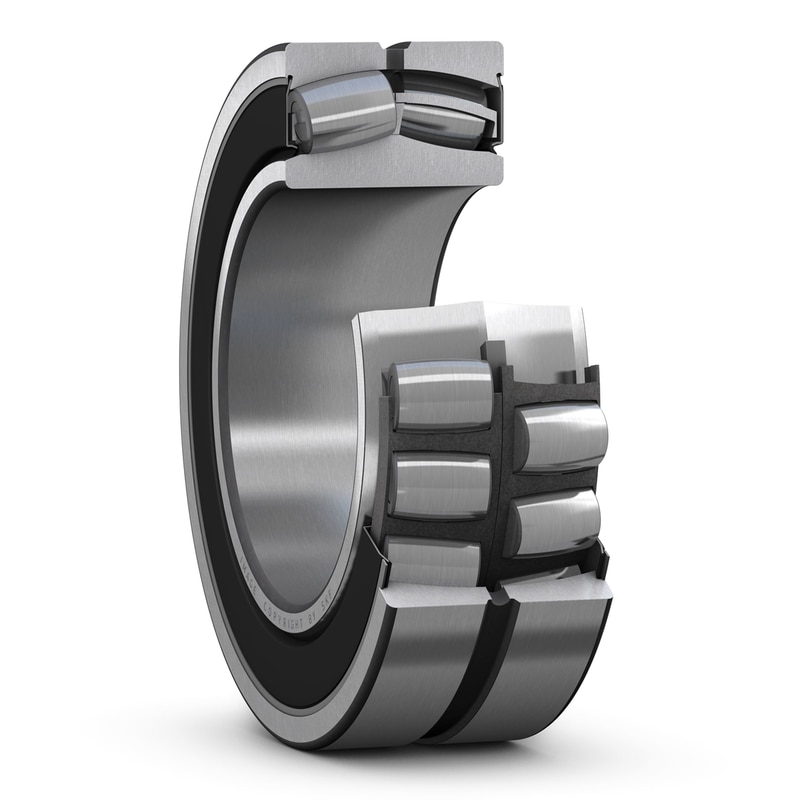

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.
| SKF performance class |
SKF Explorer
|
| Bore type |
Tapered 1:12
|
| d |
130 mm
|
Bore diameter |
|---|---|---|
| D |
210 mm
|
Outside diameter |
| B |
64 mm
|
Width |
| d2 |
≈ 144 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 194 mm
|
Shoulder/recess diameter of outer ring |
| b |
8.3 mm
|
Width of lubrication groove |
| K |
4.5 mm
|
Diameter of lubrication hole |
| r1,2 |
min. 2 mm
|
Chamfer dimension |
| Da |
max. 199 mm
|
Diameter of housing abutment |
|---|---|---|
| ra |
max. 2 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
587 kN
|
|---|---|---|
| Basic static load rating | C0 |
780 kN
|
| Fatigue load limit | Pu |
78 kN
|
| Limiting speed |
670 r/min
|
|
| Limiting value | e |
0.27
|
| Calculation factor | Y1 |
2.5
|
| Calculation factor | Y2 |
3.7
|
| Calculation factor | Y0 |
2.5
|
| Mass |
8.1 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
P5
|
