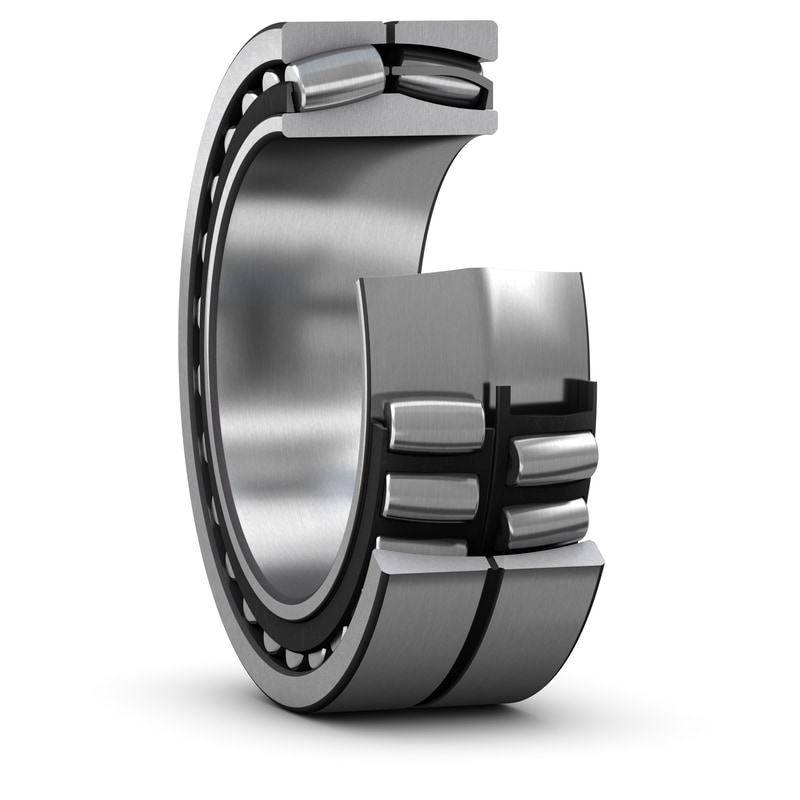

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. This variant is optimized for use in continuous casters in the metals industry. The design includes features to facilitate relubrication. The bearings are developed for very slow rotation speed.
| Bore type |
Cylindrical
|
| d |
160 mm
|
Bore diameter |
|---|---|---|
| D |
340 mm
|
Outside diameter |
| B |
114 mm
|
Width |
| d2 |
≈ 200 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 282 mm
|
Shoulder/recess diameter of outer ring |
| b |
16.7 mm
|
Width of lubrication groove |
| K |
9 mm
|
Diameter of lubrication hole |
| r1,2 |
min. 4 mm
|
Chamfer dimension |
| da |
min. 177 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 323 mm
|
Diameter of housing abutment |
| ra |
max. 3 mm
|
Radius of fillet |
| Basic static load rating | C0 |
1 960 kN
|
|---|---|---|
| Limiting speed |
20 r/min
|
|
| Limiting value | e |
0.35
|
| Calculation factor | Y1 |
1.9
|
| Calculation factor | Y2 |
2.9
|
| Calculation factor | Y0 |
1.8
|
| Mass |
49 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
