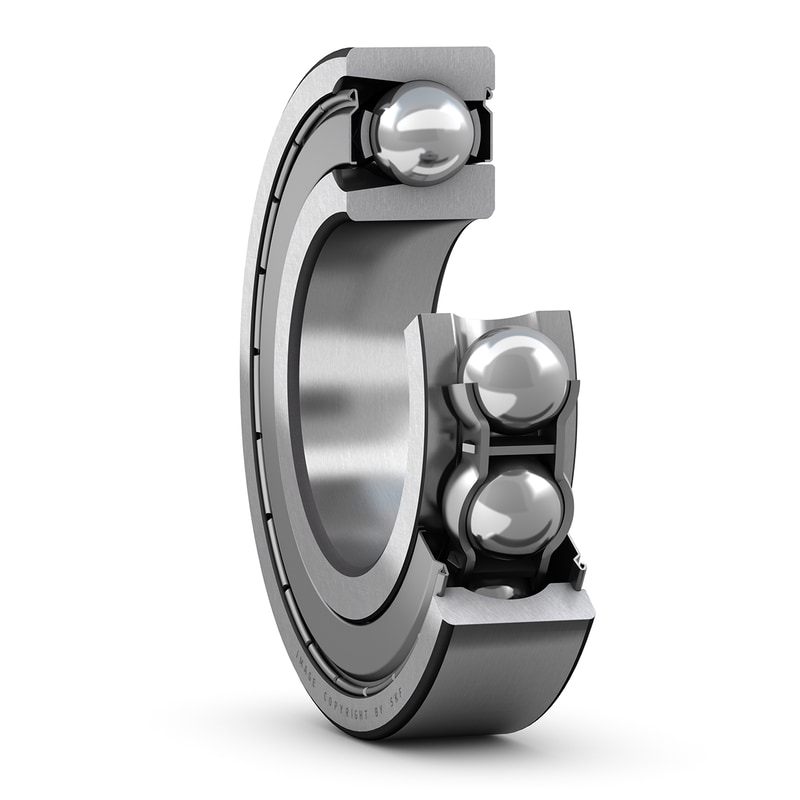

Single row deep groove ball bearings with filling slots and shields on one or both sides, accommodate more balls than standard deep groove ball bearings. They are of a simple, yet versatile, design and are robust in operation, requiring little maintenance. They can accommodate radial and axial loads in both directions. They have a higher radial load carrying capacity than the corresponding bearings without filling slots but have a limited axial load carrying capacity due to the filling slots. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
| d |
80 mm
|
Bore diameter |
|---|---|---|
| D |
140 mm
|
Outside diameter |
| B |
26 mm
|
Width |
| d1 |
≈ 95.83 mm
|
Shoulder diameter |
| D2 |
≈ 126.5 mm
|
Recess diameter |
| r1,2 |
min. 2 mm
|
Chamfer dimension |
| da |
min. 88.8 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 88.8 mm
|
Diameter of shaft abutment |
| Da |
max. 129 mm
|
Diameter of housing abutment |
| ra |
max. 2 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
88 kN
|
|---|---|---|
| Basic static load rating | C0 |
85 kN
|
| Fatigue load limit | Pu |
3.45 kN
|
| Reference speed |
8 500 r/min
|
|
| Limiting speed |
4 000 r/min
|
|
| Minimum load factor | kr |
0.04
|
| Mass bearing |
1.55 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
