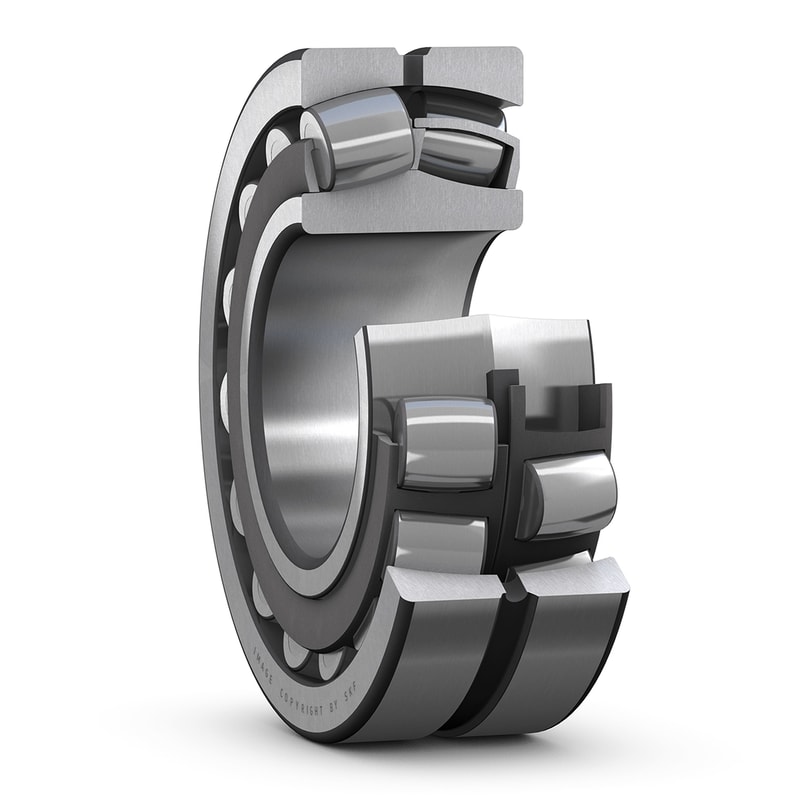

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They can be used in a modular system, including housings, sleeves and nuts.
| SKF performance class |
SKF Explorer
|
| Bore type |
Tapered 1:12
|
| d |
40 mm
|
Bore diameter |
|---|---|---|
| D |
90 mm
|
Outside diameter |
| B |
23 mm
|
Width |
| d2 |
≈ 60 mm
|
Shoulder diameter of inner ring |
| D1 |
≈ 79.8 mm
|
Shoulder/recess diameter of outer ring |
| r1,2 |
min. 1.5 mm
|
Chamfer dimension |
| da |
min. 47.2 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 81 mm
|
Diameter of housing abutment |
| ra |
max. 1.5 mm
|
Radius of fillet |
| Basic dynamic load rating | C |
107 kN
|
|---|---|---|
| Basic static load rating | C0 |
108 kN
|
| Fatigue load limit | Pu |
12 kN
|
| Reference speed |
7 000 r/min
|
|
| Limiting speed |
9 500 r/min
|
|
| Limiting value | e |
0.24
|
| Calculation factor | Y1 |
2.8
|
| Calculation factor | Y2 |
4.2
|
| Calculation factor | Y0 |
2.8
|
| Mass |
0.75 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
P5
|
