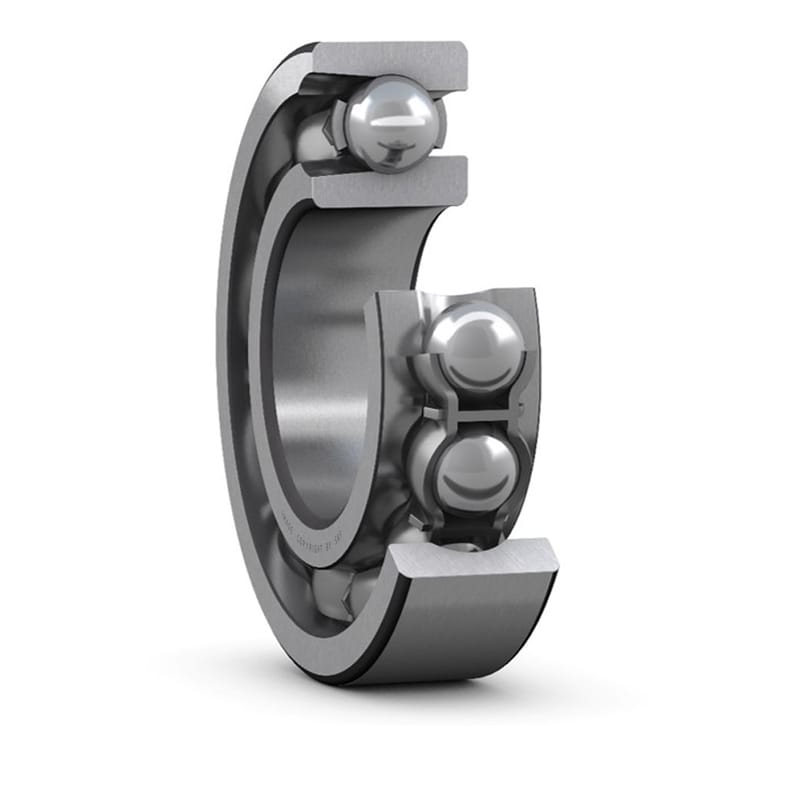

Single row deep groove ball bearings with filling slots accommodate more balls than standard deep groove ball bearings. They are of a simple, yet versatile, design and are robust in operation, requiring little maintenance. They can accommodate radial and axial loads in both directions. They have a higher radial load carrying capacity than the corresponding bearings without filling slots but have a limited axial load carrying capacity due to the filling slots.
| d |
40 mm
|
Bore diameter |
|---|---|---|
| D |
80 mm
|
Outside diameter |
| B |
18 mm
|
Width |
| d1 |
≈ 52.6 mm
|
Shoulder diameter |
| D2 |
≈ 69.8 mm
|
Recess diameter |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| da |
min. 47 mm
|
Diameter of shaft abutment |
|---|---|---|
| Da |
max. 73 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
33.6 kN
|
|---|---|---|
| Basic static load rating | C0 |
27 kN
|
| Fatigue load limit | Pu |
1.16 kN
|
| Reference speed |
15 000 r/min
|
|
| Limiting speed |
9 500 r/min
|
|
| Minimum load factor | kr |
0.04
|
| Mass bearing |
0.39 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
