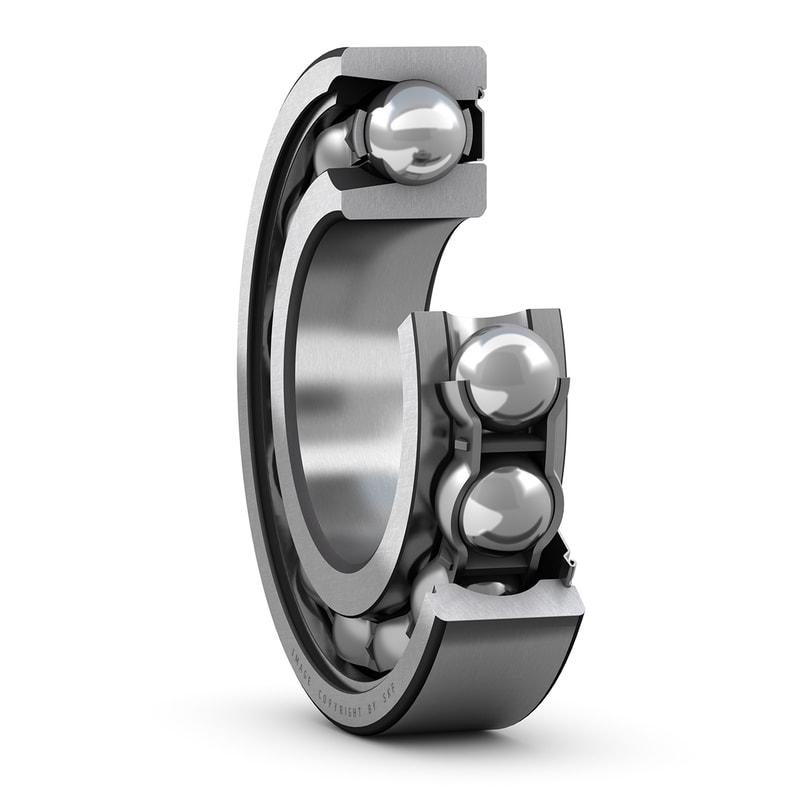

Single row deep groove ball bearings with filling slots and shields on one or both sides, accommodate more balls than standard deep groove ball bearings. They are of a simple, yet versatile, design and are robust in operation, requiring little maintenance. They can accommodate radial and axial loads in both directions. They have a higher radial load carrying capacity than the corresponding bearings without filling slots but have a limited axial load carrying capacity due to the filling slots. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
| d |
35 mm
|
Bore diameter |
|---|---|---|
| D |
72 mm
|
Outside diameter |
| B |
17 mm
|
Width |
| d1 |
≈ 46.94 mm
|
Shoulder diameter |
| D2 |
≈ 62.69 mm
|
Recess diameter |
| r1,2 |
min. 1.1 mm
|
Chamfer dimension |
| da |
min. 42 mm
|
Diameter of shaft abutment |
|---|---|---|
| da |
max. 46.8 mm
|
Diameter of shaft abutment |
| Da |
max. 65 mm
|
Diameter of housing abutment |
| ra |
max. 1 mm
|
Radius of shaft or housing fillet |
| Basic dynamic load rating | C |
27.5 kN
|
|---|---|---|
| Basic static load rating | C0 |
22 kN
|
| Fatigue load limit | Pu |
0.93 kN
|
| Reference speed |
17 000 r/min
|
|
| Limiting speed |
10 000 r/min
|
|
| Minimum load factor | kr |
0.04
|
| Mass bearing |
0.31 kg
|
| Dimensional tolerances |
Normal
|
| Radial run-out |
Normal
|
