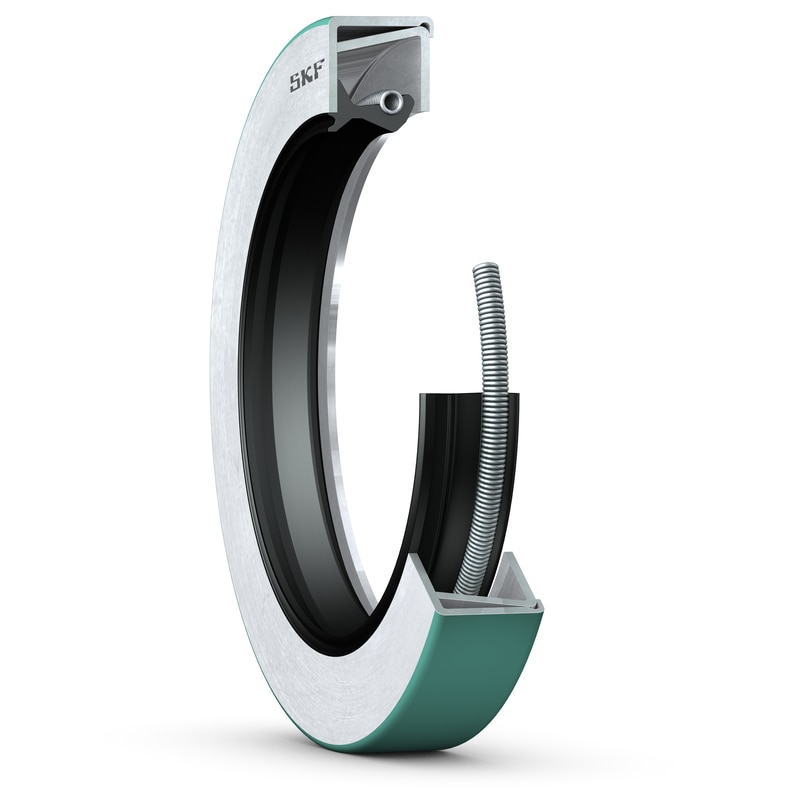

19445Radial shaft seal with double metal case, SKF Wave lip and auxiliary, non-contacting lip, for oil or grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRWHA1 seals are designed with a double metal case, an SKF WAVE lip made of elastomer with a higher pumping rate to reduce heat generation, a garter spring to optimize sealing against the shaft, and a dust lip to improve contamination exclusion. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.
| Type of outside diameter |
Metal-cased with sealant coating on the outside diameter
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
CRWHA1
|
Dimensions
| d1 |
49.225 mm
|
Shaft diameter |
|---|---|---|
| D |
85.09 mm
|
Housing bore diameter |
| b |
11.91 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
| Circumferential speed |
max. 7.77 m/s
|
| Rotational speed |
max. 3 000 r/min
|
| Pressure differential |
0.07 N/mm²
|
