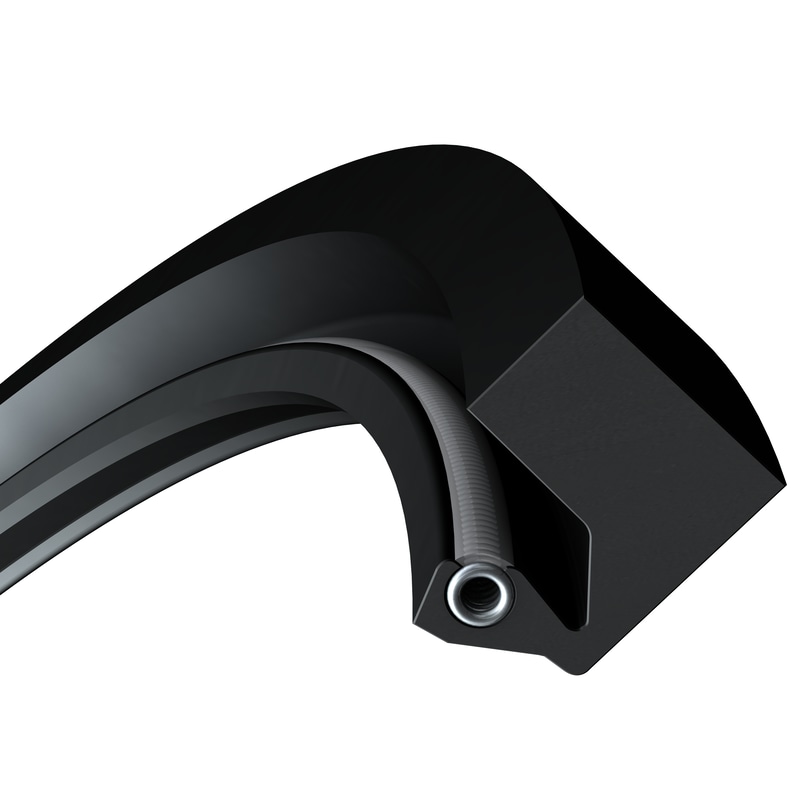

1900258Radial shaft seal for heavy industrial applications, all-rubber
HS8 seals are designed for housings with a cover plate. They have a spring-loaded sealing lip with SKF Springcover. Their split execution enables installation where there is no access to the end of the shaft. These seals perform exceptionally well in large-size machinery, and customized or heavy-duty machinery. They are designed for industries such as metal, construction, wind energy, forestry, mining, and pulp and paper.
Properties
| Metric/inch series |
Inch
|
| Design name |
HS8
|
| Design type |
Split
|
| Type of outside diameter |
All-rubber
|
| Installation |
Cover plate
|
| Auxiliary lip |
No
|
| SKF Springcover |
Yes
|
| Sealing lip material |
Nitrile rubber (NBR)
|
| Garter spring material |
Stainless steel
|
Dimensions
| d1 |
482.6 mm
|
Shaft diameter |
|---|---|---|
| D |
520.7 mm
|
Housing diameter |
| B |
19.05 mm
|
Housing width |
Application and operating conditions
| Operating temperature |
min. -35 °C
|
| Operating temperature |
max. 100 °C
|
| Circumferential speed |
max. 10 m/s
|
| Rotational speed |
max. 396 r/min
|
