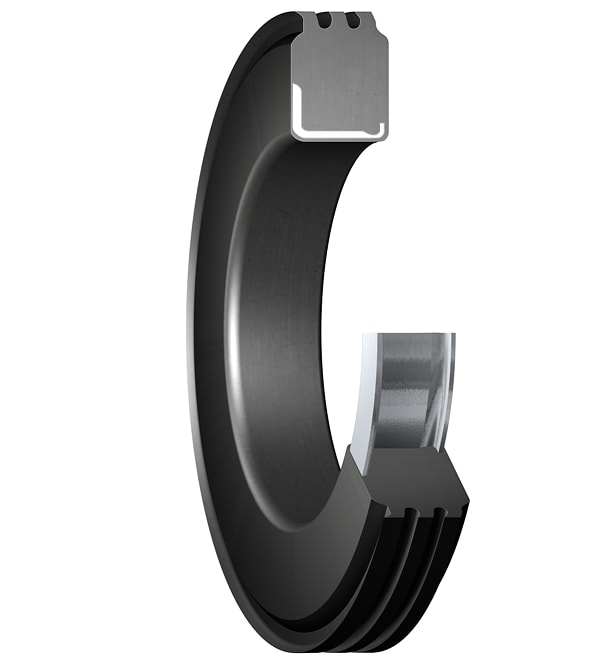

18630Radial shaft seal for general industrial applications
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. The seals have an outer covering of steel or elastomer, designed to fit the housing bore. The sealing lip is made of elastomer or thermoplastic for best sealing against the rotating shaft. A garter spring in the seal optimizes the sealing against the shaft.
| Type of outside diameter |
Metal-cased
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
X13
|
Dimensions
| d1 |
47.574 mm
|
Shaft diameter |
|---|---|---|
| D |
68.986 mm
|
Housing bore diameter |
| b |
7.137 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
| Circumferential speed |
max. 2.54 m/s
|
| Rotational speed |
max. 1 020 r/min
|
| Pressure differential |
0.02 N/mm²
|
