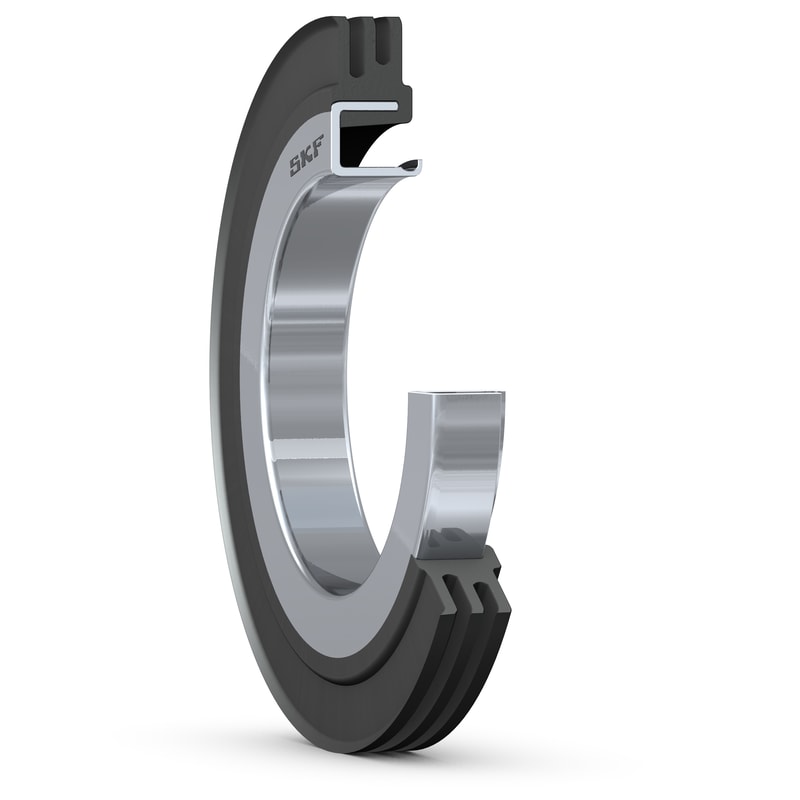

14970Radial shaft seal with single metal case and three sealing lips, for grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. X15 seals are designed with a single metal case. They have three conventional sealing lips made of nitrile rubber, which optimizes the sealing against the bore. Typical applications are grease lubricated agriculture machinery.
| Type of outside diameter |
Metal-cased
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
X15
|
Dimensions
| d1 |
38.1 mm
|
Shaft diameter |
|---|---|---|
| D |
58.064 mm
|
Housing bore diameter |
| b |
6.86 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
| Circumferential speed |
max. 2.54 m/s
|
| Rotational speed |
max. 1 273 r/min
|
| Pressure differential |
0.02 N/mm²
|
