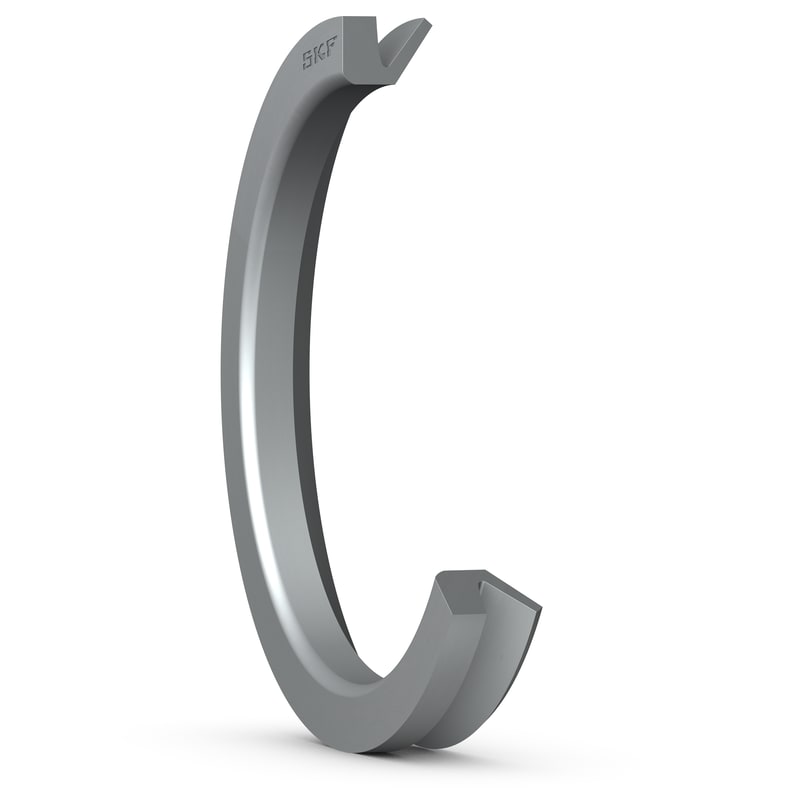

1300 VL RV-ring seal, VL design, global standard, interchangeable with VR3 design
V-ring seals (V-rings) are all-rubber, axial shaft seals. They offer an easy-to-install solution for rotating shaft applications, including use as a secondary seal in highly contaminated environments. The VL design includes a very compact axial cross section. VL seals are commonly used in confined spaces to enhance the efficiency of labyrinth seals.
| Design |
VL
|
| Lip material |
Nitrile rubber (NBR)
|
Dimensions
| d1 |
over 1 275 mm
|
Shaft diameter range (over) |
|---|---|---|
| d1 |
incl. 1 325 mm
|
Shaft diameter range (incl.) |
| d |
1 180 mm
|
Seal inside diameter, free state |
|---|---|---|
| b |
10.5 mm
|
Nominal seal width |
| b1 |
6 mm
|
Seal seat width |
| c |
6.5 mm
|
Nominal seal height |
| 2 x |
5 mm
|
Radial gap (twice) |
|
D1 max. = d1 + 2 x
|
||
| 2 y |
20 mm
|
Radial distance (twice) |
|
D min. = d1 + 2 y
|
||
| B1 |
8 mm
|
Seal fitted width |
|
± 1.5 mm
|
Tolerance seal fitted width | |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
