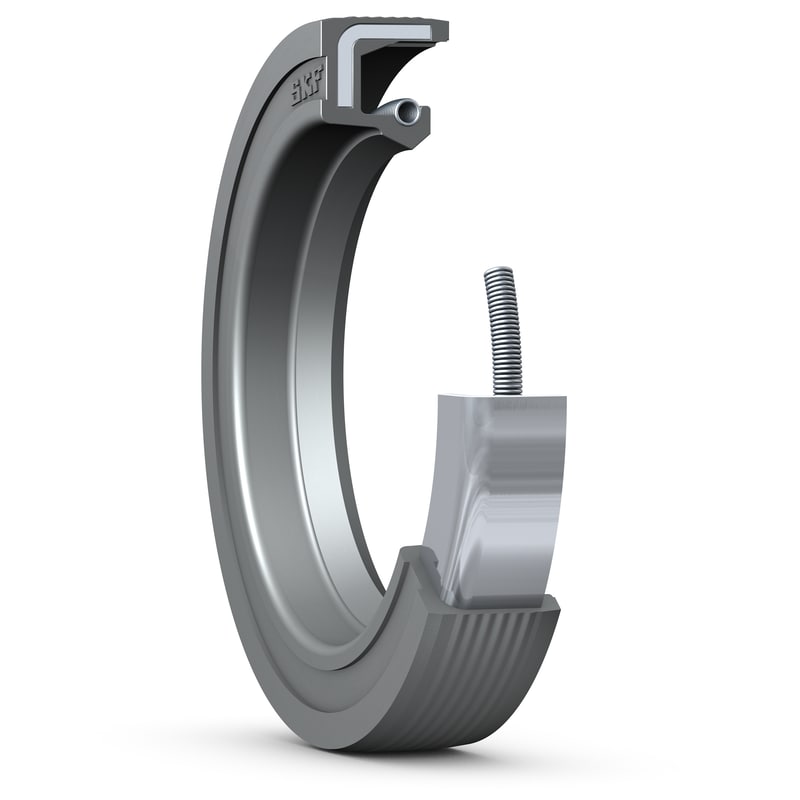

10X25X7 HMS5 RGRadial shaft seal with rubber outside diameter and single sealing lip, for oil or grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMS5 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer with a garter spring to maintain the right radial load.
| Type of outside diameter |
Rubber metal reinforced
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
HMS5
|
| Compliance with standard |
ISO 6194, DIN 3760
|
Dimensions
| d1 |
10 mm
|
Shaft diameter |
|---|---|---|
| D |
25 mm
|
Housing bore diameter |
| b |
7 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
| Operating temperature, short periods |
max. 120 °C
|
| Circumferential speed |
max. 1.31 m/s
|
| Rotational speed |
max. 2 520 r/min
|
| Pressure differential |
0.05 N/mm²
|
