100X120X13 CRSH1 RRadial shaft seal with double metal case and single sealing lip, for oil or grease

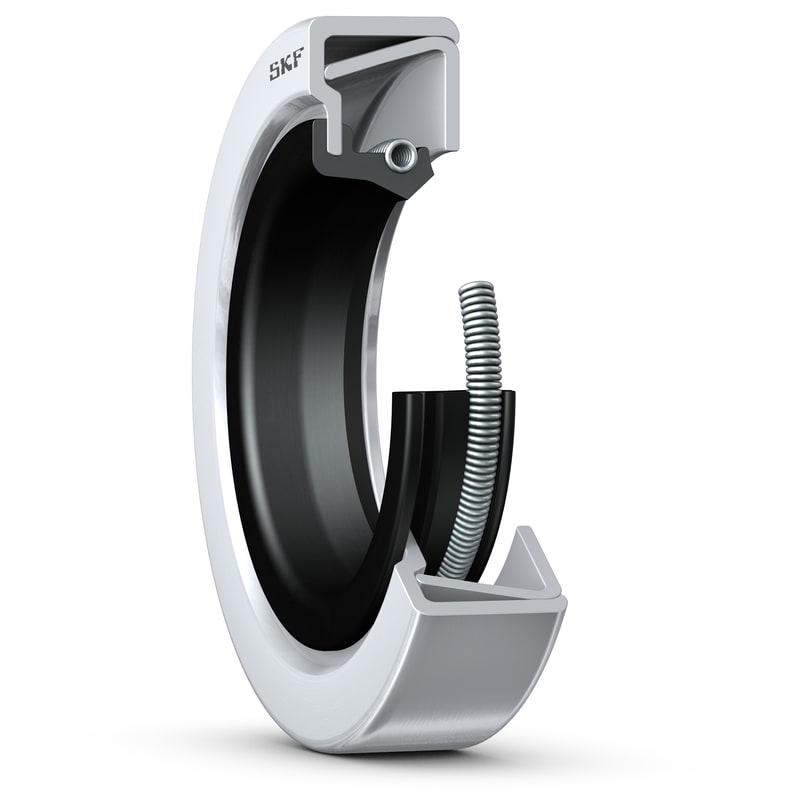

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRSH1 seals are designed with a double metal case, a sealing lip made of elastomer for best sealing against the rotating shaft. The seal also has a garter spring to optimize sealing against the shaft.
| Type of outside diameter |
Metal-cased
|
| Lip material |
Nitrile rubber (NBR)
|
| Seal design |
CRSH1
|
Dimensions
| d1 |
100 mm
|
Shaft diameter |
|---|---|---|
| D |
120 mm
|
Housing bore diameter |
| b |
13 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -40 °C
|
| Operating temperature |
max. 100 °C
|
| Circumferential speed |
max. 10.65 m/s
|
| Rotational speed |
max. 2 040 r/min
|
| Pressure differential |
0.07 N/mm²
|
