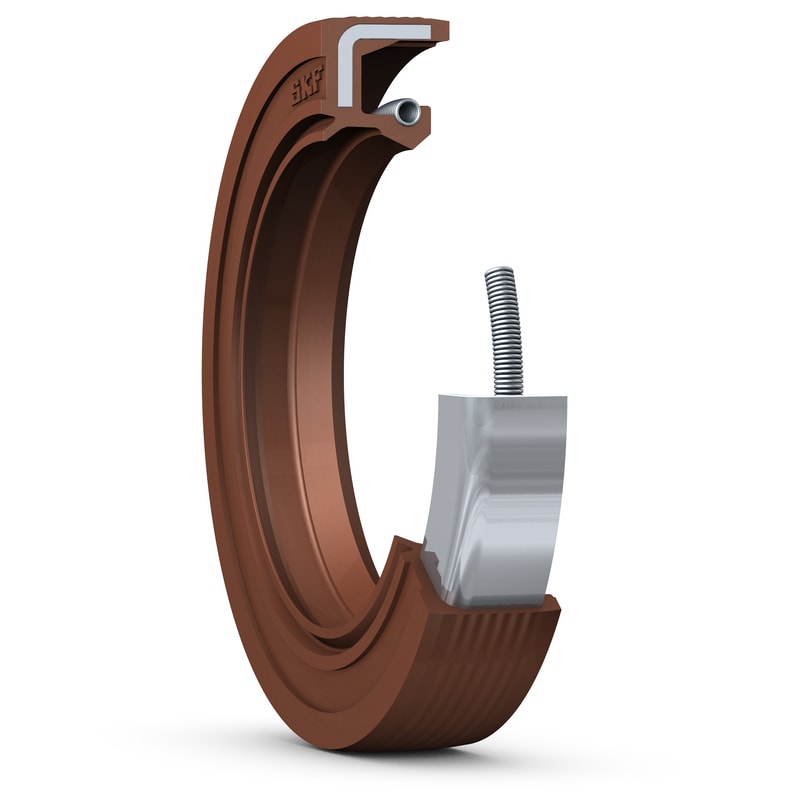

100X120X12 HMSA10 VRadial shaft seal with rubber outside diameter and single sealing lip, for oil or grease
Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.
| Type of outside diameter |
Rubber metal reinforced
|
| Lip material |
Fluoro rubber (FKM)
|
| Seal design |
HMSA10
|
| Compliance with standard |
ISO 6194, DIN 3760
|
Dimensions
| d1 |
100 mm
|
Shaft diameter |
|---|---|---|
| D |
120 mm
|
Housing bore diameter |
| b |
12 mm
|
Seal width |
Application and operating conditions
| Operating temperature |
min. -20 °C
|
| Operating temperature |
max. 200 °C
|
| Operating temperature, short periods |
max. 120 °C
|
| Circumferential speed |
max. 32.97 m/s
|
| Rotational speed |
max. 6 297 r/min
|
| Pressure differential |
0.05 N/mm²
|
