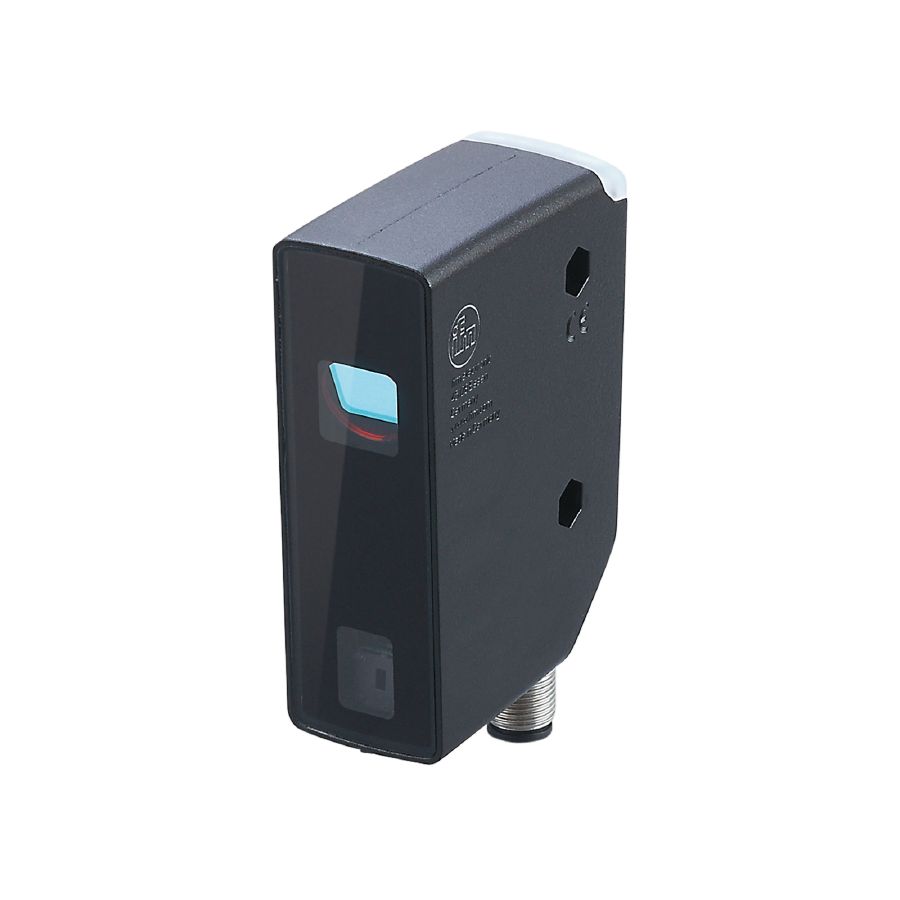

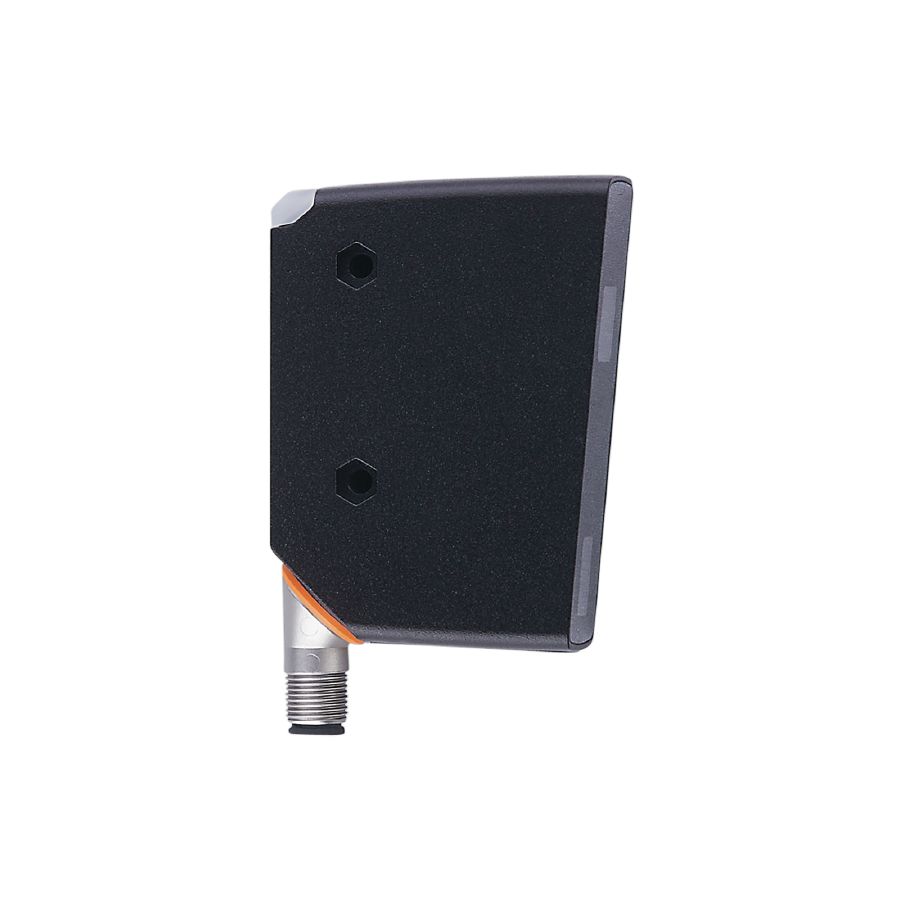

OPD100

Product characteristics

Type of light	red light

Electrical data

Operating voltage [V]	10…30 DC; (“supply class 2” to cULus)
Current consumption [mA]	< 200; (10 V)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	2
Type of light	red light
Wave length [nm]	650

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 1; Number of digital outputs: 2

Inputs

Trigger	external
Number of digital inputs	1

Outputs

Electrical design	PNP/NPN; (parameterisable)
Number of digital outputs	2
Output function	2 x normally open / normally closed; (parameterisable)
Max. current load per output [mA]	100
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring distance (Z-direction) [mm]	150…300
Width of the measuring range (X-direction) at min. measuring distance [mm]	45; (distance = 150mm)
Width of the measuring range (X-direction) at max. measuring distance [mm]	90; (distance = 300mm)
Sampling rate [Hz]	5

Accuracy / deviations

Measured value resolution

Z-direction 200 µm

X-direction 250 µm

Accuracy

Z-direction ± 500 µm

X-direction ± 500 µm

background white (90 % remission)

Software / programming

Number of profiles which can be stored	1
Number of regions of interest	1

Interfaces

Communication interface

IO-Link

Transmission type

COM3 (230,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis

SIO mode

yes

Required master port type

Min. process cycle time [ms]

2.3

IO-Link process data (cyclical)

function	bit length
process value	16
device status	4
binary switching information	1

IO-Link functions (acyclical)

operating hours counter; number of trigger events; ROI setting

Supported DeviceIDs

Type of operation	DeviceID
Default	1260

Note

For further information please see the IODD PDF file under “Downloads”

Operating conditions

Ambient temperature [°C]	-10…55
Storage temperature [°C]	-40…60
Protection	IP 65
Max. immunity to extraneous light [klx]	20

Tests / approvals

EMC

EN 60947-5-2

Laser protection class

Notes on laser protection

Caution:	laser light
laser class:	1
	EN / IEC60825-1:2007
	EN / IEC60825-1:2014
	Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.

MTTF [years]

155

UL approval

Ta	-10…55 °C
Enclosure type	Type 1
power supply	Class 2
File number UL	E174191

Mechanical data

Weight [g]	535.8
Dimensions [mm]	88 x 65 x 28.5
Materials	housing: diecast zinc; PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA

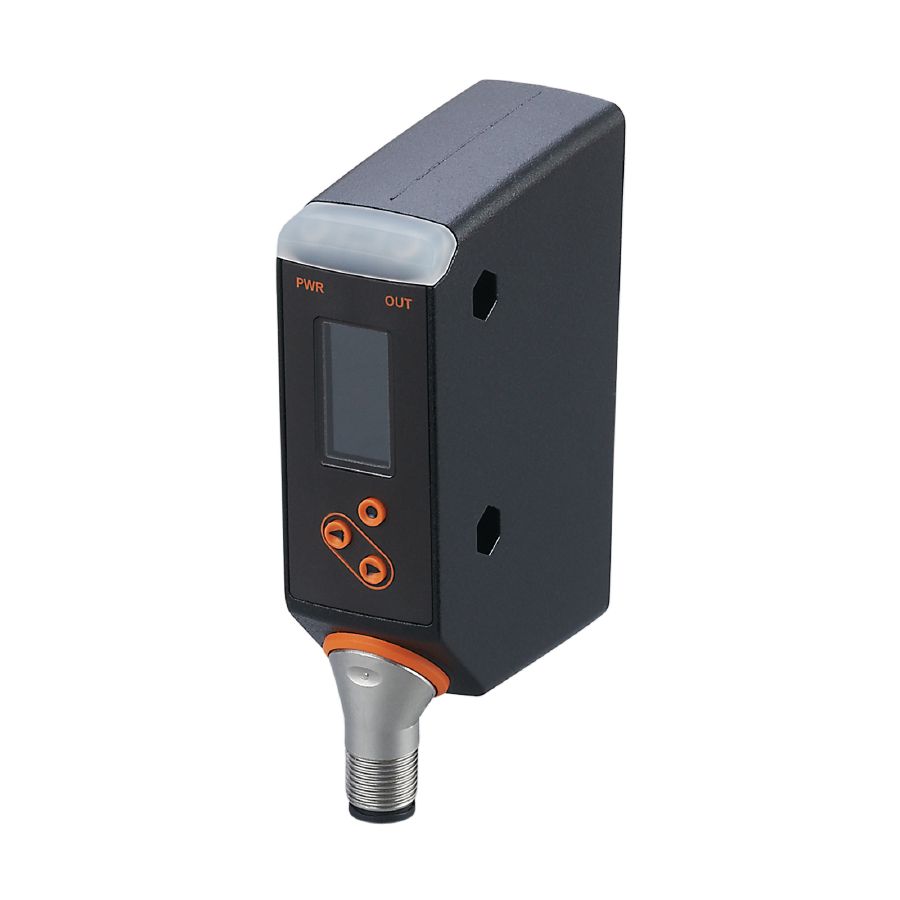

Displays / operating elements

Display

switching status	1 x LED, yellow
Display operation	1 x LED, green
	colour display

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

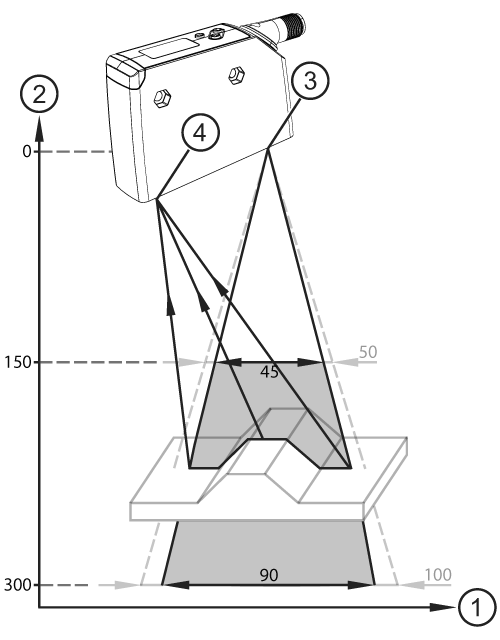

Diagrams and graphs

1	X-direction
2	Z-direction
3	laser beam aperture
4	receiver

Other data

light line

measuring distance (Z-direction)	light line
150 mm	50 x 1 mm
300 mm	100 x 1 mm

The values apply at
Extraneous light on the object	< 20 klx
constant ambient conditions	23 °C / 960 hPa
minimum power-on time in minutes	10
