| Type of light | red light |
|---|---|

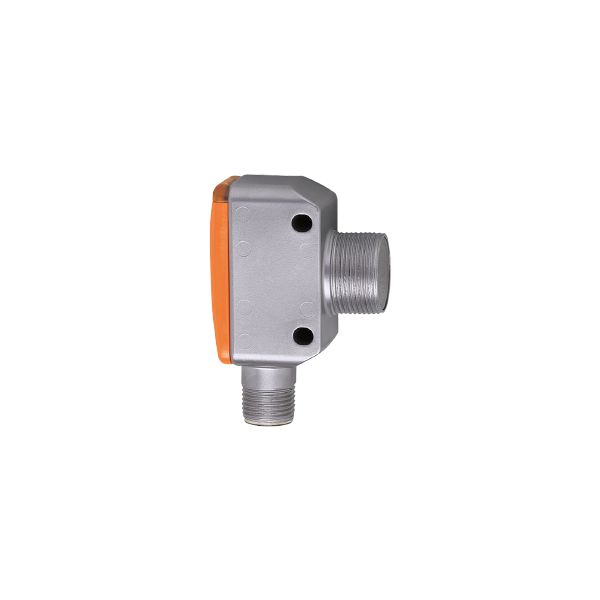

| Housing | rectangular with M18 thread |
| Function principle | Through-beam sensor |
|---|
| Operating voltage [V] | 10…30 DC |
|---|---|
| Rated insulation voltage [V] | 32 |
| Current consumption [mA] | 17 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 300 |
| Type of light | red light |
| Wave length [nm] | 662 |
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | 15 |
| Max. light spot diameter [mm] | 800 |
| Light spot dimensions refer to | at maximum range |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Device Identification, Device Diagnosis | ||||
| SIO mode | no | ||||
| Required master port type | A | ||||
| Min. process cycle time [ms] | 2.5 | ||||
| IO-Link process data (cyclical) |
|
||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter | ||||
| Supported DeviceIDs |
|
||||
| Note |
|
| Ambient temperature [°C] | -25…80 |
|---|---|
| Storage temperature [°C] | -40…80 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 1011 | ||||||||
| UL approval |
|
| Weight [g] | 78 | |
|---|---|---|
| Housing | rectangular with M18 thread | |
| Dimensions [mm] | 52.9 x 20 x 34.6 | |
| Thread designation | M18 x 1 | |
| Materials | 1.4542 (17-4 PH / 630); PEI | |
| Lens material |
|
|
| Lens alignment | side lens |
| Display |
|
|---|
| Items supplied |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A |
|---|
