$9,980.00
| Type of light | red light |
|---|---|
| Housing | threaded type |
| Function principle | Through-beam sensor |
|---|
| Operating voltage [V] | 10…36 DC |
|---|---|
| Current consumption [mA] | 10 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 624 |
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Transmitter / receiver | receiver |
|---|---|

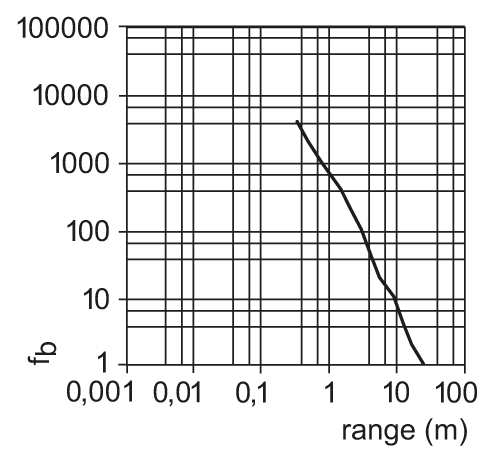

| Range [m] | < 20 |
| Range adjustable | no |
| Ambient temperature [°C] | -25…60 |
|---|---|
| Protection | IP 67 |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 1112 |
| Weight [g] | 50.1 | |
|---|---|---|
| Housing | threaded type | |
| Dimensions [mm] | M18 x 1 / L = 60 | |
| Thread designation | M18 x 1 | |
| Materials | housing: stainless steel (1.4404 / 316L) | |
| Lens material |
|
| Display |
|
|---|
| Items supplied |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A |
|---|
Datasheet
EN PDF
